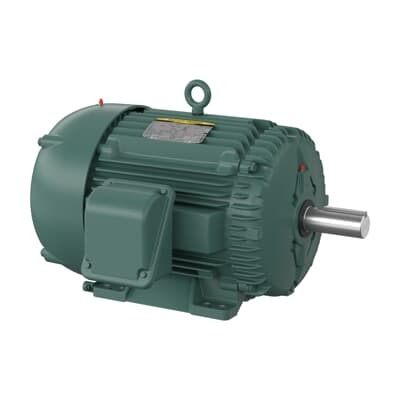

ABB 7BECP84110T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84110T-4
Quick Summary
IEEE 841 Severe Duty motor delivers rugged, efficient power for demanding industrial drives and material handling applications. In harsh environments, downtime and maintenance costs erode productivity; this motor minimizes unplanned outages with rugged reliability. It meets IEEE 841 Severe Duty standards, features a TEFC enclosure with IP56 protection, and delivers NEMA Premium efficiency. For buyers, the 40 HP, 460 V, 3‑phase solution fits standard 324T footprints and foot-mounted installations, delivering long-term efficiency gains. Designed for OEMs and service teams, it supports easy maintenance, reliable startups, and scalable performance across global operations. Its Baldor-Reliance heritage ensures wide compatibility with ABB/MG electronics and spare-part availability, maximizing uptime across industries.
Product Information
Extended Description
7BECP84110T-4 ABB: Severe Duty Motor 40 Hp 460 V (ECP84110T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1770RPM,3PH,60HZ,324T,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84110T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LYG135: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
ECP84110T-4
Gross Volume
18748.226 inÂł
Gross Weight
629 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
IP Class
IP56
Insulation Class
F
Invoice Description
40HP,1770RPM,3PH,60HZ,324T,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 40 HP, 1800 RPM, Frame Size 324T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP84110T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
86 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
629 lb
Product Net Width
25.688 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
46 A
Rated Efficiency
94.10 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B12-0000-0365
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
40 HP, 1800 RPM, Frame Size 324T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty construction paired with a 40 HP, 460 V, 3‑phase operation in a 324T frame. Business Impact: Rugged bearings, reinforced windings, and a robust frame deliver longer service life and reduced maintenance downtime, lowering total cost of ownership. Application: Ideal for conveyors, pumps, and mixers in harsh, high-vibration facilities where uptime is critical. Feature: TEFC enclosure with IP56 protection and a substantial 629 lb gross weight. Business Impact: Seals resist dust and moisture intrusion, extending inspection intervals and reducing repair costs. Application: Well-suited for wash-down areas, outdoor installations, and heavy-duty process lines. Feature: Premium Efficiency rating (94.10%) with NEMA Premium designation and a 1.15 service factor. Business Impact: Lower energy consumption translates to tangible energy bill reductions and cooler running temperatures, enhancing reliability. Application: Supports continuous-duty processes with strict energy targets across facilities. Feature: 4-pole design with rated speed of 1770 r/min (60 Hz) and synchronous speed of 1800 r/min at 460 V. Business Impact: Stable torque and predictable performance during startup and load changes, improving process control. Application: Suitable for pumps, fans, and other equipment where speed consistency matters. Feature: Foot-mounted 324T frame with 2.13 in shaft and Direct-on-Line starting. Business Impact: Simplifies installation, retrofits, and alignment with existing couplings, reducing commissioning time. Application: OEM integrations and service refurbishments across distributed operations.
