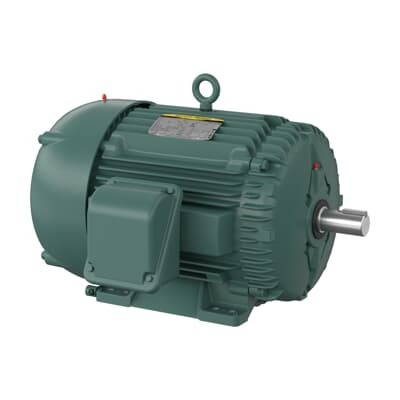

ABB 7BECP84114T-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84114T-5
Quick Summary
IEEE 841 Severe Duty motor from ABB delivers rugged, reliable power for continuous operation in demanding industrial processes. This 50 HP, 575 V three-phase TEFC motor is built to endure harsh environments, reducing unscheduled downtime in conveyors, pumps, and fans. The design targets wear points common in severe-duty service, including regreasable bearings and a robust 6312 ball bearing system. With certifications such as Premium Efficiency, NEMA Premium, and IP56 TEFC enclosure, it supports energy efficiency and regulatory compliance across global sites. By combining durable construction with predictable performance, this ABB motor lowers maintenance costs and extends service intervals, while multi-warehouse stocking shortens procurement cycles for critical equipment.
Product Information
Extended Description
7BECP84114T-5 ABB: Severe Duty Motor 50 Hp 575 V (ECP84114T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3530RPM,3PH,60HZ,326TS,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84114T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LYF808: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
ECP84114T-5
Gross Volume
18748.226 in³
Gross Weight
662 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
50HP,3530RPM,3PH,60HZ,326TS,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 50 HP, 3600 RPM, Frame Size 326Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84114T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
662 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
44.2 A
Rated Efficiency
93 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Ts, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
575 V
Feature: IEEE 841 Severe Duty construction with 50 HP rating and 326TS frame. Business impact: Delivers robust performance in harsh environments, extending service life and reducing unplanned downtime. Application: Ideal for conveyors, pumps, and processing equipment where continuous duty is required. Feature: TEFC enclosure with IP56 protection. Business impact: Provides protection against dust, humidity, and ingress in tough plant floors, enabling reliable operation in challenging environments. Application: Suitable for dusty manufacturing lines and wash-down areas. Feature: Regreasable bearings (6312) and heavy-duty shaft design. Business impact: Lowers maintenance frequency and wear-related failures, improving uptime and total cost of ownership. Application: Heavy-duty drives in material handling and processing. Feature: Direct on line starting with a 60 Hz, 575 V supply. Business impact: Reduces drive hardware complexity and upfront cost while delivering dependable startup for steady-state loads. Application: Applications with minimal soft-start requirements or where VFD-based control is implemented downstream. Feature: Premium Efficiency and high power factor (93% efficiency, ~0.91 PF). Business impact: Delivers energy savings and reduced utility costs over the motor’s life, improving sustainability metrics. Application: Continuous-duty fans, pumps, and mixers in energy-conscious facilities. Feature: Stocked at multiple warehouses (USA and international). Business impact: Shorter lead times and faster procurement for critical equipment. Application: OEMs and maintenance teams managing tight project schedules. Feature: NEMA Design B, 1.15 service factor, and 3-phase, 60 Hz operation. Business impact: Predictable performance margins under varying load conditions, minimizing risk of overheating and nuisance tripping. Application: General-purpose industrial drives requiring reliable torque and speed characteristics.
