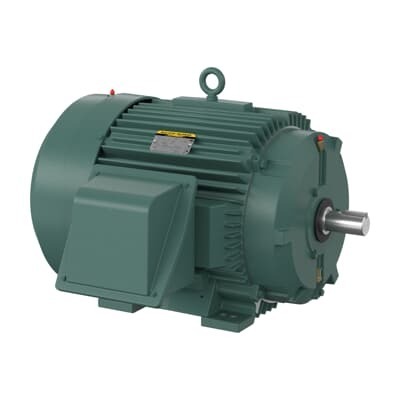

ABB 7BECP84313T-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84313T-5
Quick Summary
IEEE 841 Severe Duty ABB 7BECP84313T-5 motor delivers robust, high-efficiency power for critical process equipment in harsh industrial environments. This 75 HP, 575 V, 3-phase design is engineered to minimize unplanned downtime and maximize uptime across demanding applications such as pumps, conveyors, and fans. In harsh plants, maintenance intervals and energy waste erode productivity; this motor tackles those pain points with a regreasable bearing system and a TEFC enclosure. Certified for premium efficiency and trusted by globally deployed plants, it aligns with NEMA Premium, UR, and CCSA specifications. By combining rugged construction with reliable performance, it offers lower total cost of ownership and consistent process reliability alongside improved energy metrics.
Product Information
Extended Description
7BECP84313T-5 ABB: Severe Duty Motor 75 Hp 575 V (ECP84313T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TS,A36068M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84313T-5
Certification Agency
CCSA US | CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000052
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
ECP84313T-5
Gross Volume
42745.5 in³
Gross Weight
1018.001 lb
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TS,A36068M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
IEEE 841 Severe Duty, 75 HP, 3600 RPM, Frame Size 365Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84313T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
42 in
Product Net Height
29.5 in
Product Net Weight
1018.001 lb
Product Net Width
34.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
64.5 A
Rated Efficiency
94.50 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 365Ts, Standard, 3 PH, TEFC, 575 V
Standards
None
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
575 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design delivers enhanced reliability and extended service life in continuous-duty environments, reducing downtime and maintenance costs for heavy-duty applications such as mining and chemical processing. This translates to higher plant availability and lower maintenance spend, particularly where motors operate at elevated ambient temperatures. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) improves energy intensity metrics across long-running processes, cutting operating costs for pumps and fans in batch and continuous operations. Application includes water treatment, cement, and metals processing where energy efficiency directly influences the bottom line. Feature → Business Impact → Application: TEFC enclosure with IP56 protection minimizes ingress of dust and moisture, enabling installation in dusty or washdown environments without enclosure-related failure, supporting maintenance-friendly retrofits and faster commissioning. Feature → Business Impact → Application: Regreasable bearings simplify maintenance planning and extend lubrication intervals, reducing unscheduled stops in heavy-load conveyors and mixer drives. Feature → Business Impact → Application: Direct on line starting reduces startup stress on power systems and adjacent equipment, enabling economical, robust commissioning for new lines or modernized plants. Feature → Business Impact → Application: 575 V, 3-phase operation with 365TS frame and foot mounting delivers plug-and-play compatibility with standard industrial drives and mechanical interfaces, accelerating installation, retrofits, and upgrade projects with minimal custom engineering. These attributes collectively support reduced energy use, improved uptime, and a strong return on investment for systems with demanding rotational loads.
