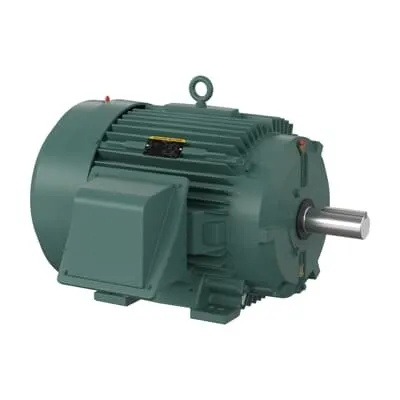

ABB 7BECP84316T-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84316T-5
Quick Summary
IEEE 841 Severe Duty Motor powers critical pumps and conveyors in harsh industrial environments. This ABB model addresses downtime and maintenance pain points by offering rugged construction, direct-on-line starting, and extended bearing life. With certifications such as NEMA Premium efficiency, UR safety approval, and explosion-protected Class I ratings, you gain compliance and reliability. Designed for 575 V, 3-phase use and a 365T frame, it integrates with standard VFDs and meets energy-saving targets, making retrofit and new-build projects more economical. Stocked at multiple warehouses with zero lead time, it offers rapid procurement and reduces downtime.
Product Information
Extended Description
7BECP84316T-5 ABB: Severe Duty Motor 75 Hp 575 V (ECP84316T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,A36070M,
Altitude
1000 m
Ambient Temperature
40 Ā°C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-RelianceĀ®
Catalog Number
ECP84316T-5
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000088
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
ECP84316T-5
Gross Volume
33833.008 inĀ³
Gross Weight
446.788 kg
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,A36070M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84316T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
446.788 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
69 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 575 V
Standards
None
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
Feature ā Business Impact ā Application: IEEE 841 Severe Duty design delivers extended motor life in dusty, wet, or high-vibration environments, reducing maintenance costs and downtime in mining and heavy process plants. The premium efficiency rating (95.40%) lowers energy costs across continuous duty cycles, supporting energy-management initiatives in oil, gas, and chemical processing. TEFC enclosure with IP56 protection and a 4-pole, 365T frame supports overseas and on-site installation in challenging environments, enabling compliant operation under harsh conditions. Direct-on-line starting simplifies integration with existing drives and reduces soft-start requirements, improving startup reliability for conveyors and pumps. Regreasable bearings and 60 Hz operation offer predictable maintenance windows and longer intervals between service.
