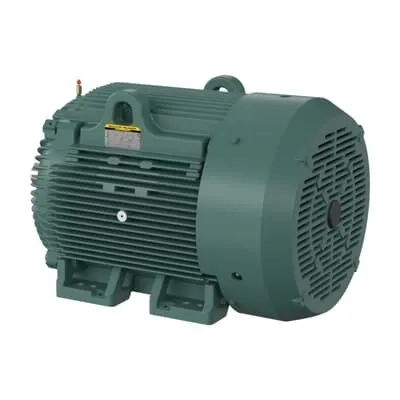

ABB 7BECP84402T-5 Severe Duty Motor - IEEE 841
Part Number: 7BECP84402T-5
Quick Summary
IEEE 841 Severe Duty Motor from ABB delivers reliable 100 HP, 575 V performance for demanding process lines and heavy-duty industrial equipment. This rugged motor minimizes downtime by tolerating harsh environments and long duty cycles, addressing costly failures engineers often encounter in mining, cement, or pumping applications. With premium efficiency, TEFC enclosure, and IP56 protection, the design aligns with stringent standards and reduces maintenance costs while improving energy performance. For buyers integrating Baldor-Reliance products, the 7BECP84402T-5 fits the 405TS frame with horizontal foot mounting, delivering lifecycle value, easier spares, and a smoother retrofit path for critical systems.
Product Information
Extended Description
7BECP84402T-5 ABB: Severe Duty Motor 100 Hp 575 V (ECP84402T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,3565RPM,3PH,60HZ,405TS,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP84402T-5
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617429-791: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
ECP84402T-5
Gross Volume
55566 inÂł
Gross Weight
581.505 kg
Horsepower Rating UL/CSA
100.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
100HP,3565RPM,3PH,60HZ,405TS,TEFC,FOOT,
Lubrication
Regreasable
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 100 HP, 3600 RPM, Frame Size 405Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84402T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
90 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
49 in
Product Net Height
27 in
Product Net Weight
581.505 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
88 A
Rated Efficiency
95 %
Rated Speed
3565 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
100 HP, 3600 RPM, Frame Size 405Ts, Standard, 3 PH, TEFC, 575 V
Standards
None
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
575 V
Feature: IEEE 841 Severe Duty construction provides extended bearing life and reduced failure modes in tough environments. Business Impact: lower maintenance costs and fewer unplanned outages, boosting plant uptime. Application: mining conveyors, cement mills, and gravel processing lines benefit from consistent performance under vibration and dust. Feature: 100 HP at 575 V in a 3-phase configuration delivers robust torque and drive capability with scalable control. Business Impact: potential energy efficiency gains and improved process control, enabling higher throughput without oversizing drives. Application: large conveyors, pumps, and crushers in heavy industry. Feature: TEFC enclosure with IP56 protection guards critical internals from dust, moisture, and contaminants. Business Impact: longer lubricant life and reduced bearing wear, translating to lower maintenance intervals and extended service intervals. Application: cement plants, mineral processing, and steel mills. Feature: Frame 405TS with foot-mounted, horizontal mounting supports straightforward installation and retrofits on existing Baldor footprints. Business Impact: faster commissioning, minimal architectural changes, and reduced installation risk. Application: retrofits and new builds in OEM factories. Feature: Regreasable bearings and a design that supports a 60-minute duty time profile. Business Impact: lowered lubrication costs and improved reliability in continuous-duty cycles. Application: continuous process lines and repetitive loading scenarios. Feature: Stock availability and zero-day lead time across multiple warehouses improves project schedules. Business Impact: reduces inventory planning risk and accelerates project timelines. Application: procurement teams optimizing capital projects and maintenance spend. Industry-focused context: this motor aligns with IEEE 841 Severe Duty expectations while maintaining Baldor-Reliance compatibility for quick spares, long-term supply, and predictable ROI across cement, mining, and chemical processing sectors.
