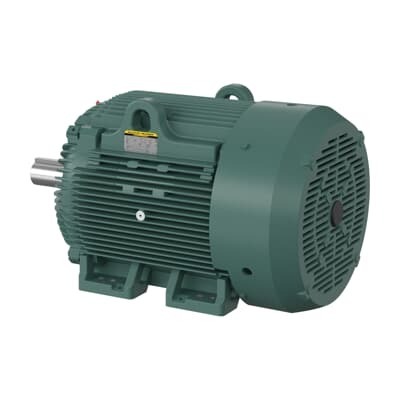

ABB 7BECP84404T-4 Severe Duty Motor - IEEE 841
Part Number: 7BECP84404T-4
Quick Summary
ABB 7BECP84404T-4 Severe Duty Motor is a 75 HP, 460 V drive solution for heavy industrial pumps and conveyors. In harsh environments, operators often struggle with overheating, frequent maintenance, and unplanned downtime. This motor carries IEEE 841 Severe Duty, TEFC enclosure, and IP56 protection, delivering durability and reliability. As a premium-efficiency, 3-phase, 75 HP motor with a 405T frame and foot mounting, it enables energy savings and easy integration. With stock available at multiple warehouses and a 0-day lead time, projects can stay on schedule. Its robust design suits demanding OEM applications in oil and gas, mining, water treatment, and packaging lines.
Product Information
Extended Description
7BECP84404T-4 ABB: Severe Duty Motor 75 Hp 460 V (ECP84404T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1185RPM,3PH,60HZ,405T,TEFC,FOO
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6316 | Ball
Bearing NDE
6316 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP84404T-4
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617429-818: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
ECP84404T-4
Gross Volume
105840 inÂł
Gross Weight
601.917 kg
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
75HP,1185RPM,3PH,60HZ,405T,TEFC,FOOT,
Lubrication
Regreasable
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 75 HP, 1200 RPM, Frame Size 405T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP84404T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
85 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
601.917 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
87 A
Rated Efficiency
94.50 %
Rated Speed
1185 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.88 in
Short Description
75 HP, 1200 RPM, Frame Size 405T, Standard, 3 PH, TEFC, 460 V
Standards
None
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design and 75 HP rating provide enhanced durability and longer mean time between failures, reducing maintenance costs and unplanned downtime in harsh environments. This translates to higher production uptime for pumps, crushers, and conveyors in mining, cement, and chemical processing. Application: Heavy-duty conveying systems and process pumps that require reliable operation under tough conditions. Feature → Business Impact → Application: TEFC enclosure and IP56 protection safeguard internal components from dust, moisture, and contaminants, improving reliability in dusty plants and outdoor installations. Application: Cement plants, metal foundries, and chemical facilities where weatherproof sealing is critical. Feature → Business Impact → Application: Premium efficiency (94.5%) and a service factor of 1.15 deliver energy savings and improved load handling, reducing operating costs over the motor’s life. Application: Continuous-duty fans, blowers, and mix lines in food processing, water treatment, and packaging lines. Feature → Business Impact → Application: 405T frame with foot mounting, horizontal mounting orientation, and a 2.88 in shaft diameter simplifies installation and retrofit projects, enabling quick baseload integration with existing bases. Application: OEM builds and maintenance projects needing minimal downtime during installation. Feature → Business Impact → Application: 0-day lead time and stock in multiple warehouses enable fast procurement and shorter project timelines, reducing capital tied up in inventory. Application: New installations and plant expansions where uptime is critical. Feature → Business Impact → Application: Regreasable bearings and IEEE 841 construction support long service life and easy maintenance planning, lowering lifecycle costs. Application: Mineral processing, pulp and paper, and other high-load mechanical systems where regular maintenance windows are limited.
