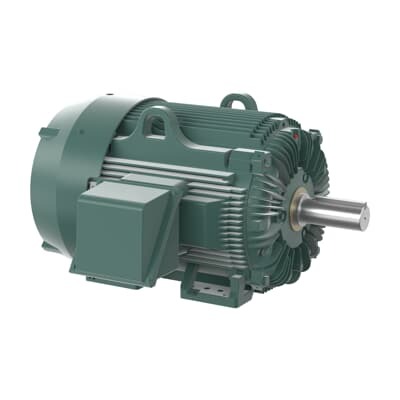

ABB 7BECP84406TR-4 Severe Duty Motor - Premium Efficiency
Part Number: 7BECP84406TR-4
Quick Summary
ABB 7BECP84406TR-4 Severe Duty Motor delivers 150 HP at 460 V in a robust, three‑phase package designed for continuous operation in harsh industrial environments. Ideal for conveyors, pumps, and extruders where uptime is critical, it offers rapid procurement with 0 day lead time and stock across multiple warehouses. This IEEE 841‑level design aligns with NEMA Premium efficiency and TEFC enclosure, providing protection against dust and moisture while maximizing energy savings. The motor carries safety and quality certifications (UR, NEMA Premium, CCSA US) for reliable compliance, and its 445T foot‑mounted frame with horizontal mounting simplifies installation and integration with existing drives and controls. In short, you gain operational resilience plus predictable total cost of ownership for demanding production lines.
Product Information
Extended Description
7BECP84406TR-4 ABB: Severe Duty Motor 150 Hp 460 V (ECP84406TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1785RPM,3PH,60HZ,445T,A4488M,
Ambient Temperature
40 °C
Bearing
6318, Roller
Bearing NDE
NU222
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84406TR-4
Certification Agency
CCSA US | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
ECP84406TR-4
Gross Volume
105840 in³
Gross Weight
1826 lb
Insulation Class
F
Invoice Description
150HP,1785RPM,3PH,60HZ,445T,A4488M,TEFC
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
445T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
150 Hp
Power Factor
86 %
Product Name
IEEE 841 Motors
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
1826 lb
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
169 A
Rated Efficiency
95.80 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: High‑efficiency design with 95.80% rated efficiency and 0.86 power factor reduces operating costs on continuous duty lines like conveyors and pumps. This translates to measurable energy savings and lower utility bills, especially in high‑hour applications. Application: material handling, water treatment, and chemical processing where steady power and cost containment matter. Feature → Rugged TEFC enclosure → Increased protection against dust, moisture and environmental debris reduces unplanned downtime. Application: foundries, mining, and cement plants requiring reliable performance in tough atmospheres. Feature → 445T frame, 3‑phase 460 V, and Direct On Line starting → Simplified installation, compatibility with standard drives, and immediate start‑up in new or retrofit projects. Application: HVAC systems, fans, and extruders. Feature → 1785 r/min (syn 1800) and 4P power design → Consistent torque characteristics and predictable performance. Application: conveyors, agitators, and mixing equipment. Feature → Foot Mounted, Horizontal mounting, NEMA Design B → Flexible integration with existing baseplates and control cabinets, reducing installation time. Application: packaging lines and material transfer systems. Feature → Stocked at multiple warehouses and 0 day lead time → Faster project kickoffs and reduced maintenance downtime. Application: global manufacturing facilities and OEM runs. Feature → Certifications (NEMA Premium, UR, CCSA US) → Regulatory compliance and safer operation, minimizing audit findings. Application: regulated industries such as food & beverage, chemical processing, and material handling. Feature → IEEE 841 Motors designation and Premium Efficiency → Industry‑leading reliability and energy performance. Application: harsh environments where long service life is essential.
Get a Quick Quote for a ABB 7BECP84406TR-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP84406TR-4?
Enquire Now
FAQs
Yes. This 460 V, 3‑phase motor uses a 445T frame and foot‑mounted base type, designed for horizontal mounting and straightforward alignment with standard VFDs or soft starters. Direct On Line starting is supported, and the 1.15 service factor provides margin for startup surges in typical process lines.
Key specs include rated current around 169 A, rated speed 1785 r/min (synchronous 1800 r/min), efficiency 95.80%, and power factor approximately 0.86. It operates at 460 V with a TEFC enclosure and insulation class F, suitable for continuous duty in demanding environments.
Ideal for conveyors, pumps, fans, mixers, and extruders in manufacturing, mining, and processing plants. Its IEEE 841 alignment, NEMA Premium efficiency, and robust enclosure support reliable operation in harsh conditions while meeting industry standards and reducing energy costs.
This model carries NEMA Premium efficiency, UR recognition, and CCSA US certification, along with IEEE 841 designation. These approvals support regulatory compliance, safer operation, and smoother audits in regulated sectors.
Leverage the 0 day lead time and multi‑warehouse stocking to minimize downtime and expedite maintenance. The 95.8% efficiency and 1.15 service factor contribute to lower operating costs and extended service life, improving total cost of ownership and delivering measurable ROI over the motor’s life cycle.
