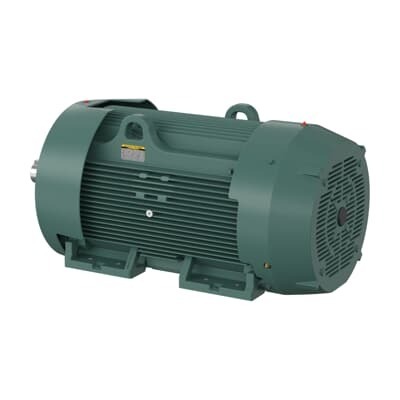

ABB 7BECP84408TR-4 - IEEE 841 Severe Duty
Part Number: 7BECP84408TR-4
Quick Summary
IEEE 841 Severe Duty motor delivers reliable 250 HP at 460 V for demanding continuous-duty applications. This robust solution addresses downtime and maintenance challenges by combining rugged construction with high efficiency. Key certifications and protections—UL/CSA recognition, IP56 protection, and TEFC enclosure with robust CCSA US | UR validation—enhance compliance and reliability in harsh environments. With multi-warehouse stocking and near-zero lead times, ABB helps equipment owners reduce procurement risk and total cost of ownership while keeping critical processes running smoothly.
Product Information
Extended Description
7BECP84408TR-4 ABB: Severe Duty Motor 250 Hp 460 V (ECP84408TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
250HP,1785RPM,3PH,60HZ,449T,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP84408TR-4
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617434-667: Dimension Sheet
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
449
Frequency (f)
60 Hz
Global Commercial Alias
ECP84408TR-4
Gross Volume
142222.5 inÂł
Gross Weight
1358.509 kg
Horsepower Rating UL/CSA
250.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
250HP,1785RPM,3PH,60HZ,449T,TEFC
Lubrication
Oil Forced
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 250 HP, 1800 RPM, Frame Size 449T, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP84408TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
449T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
250 Hp
Power Factor
88 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
63 in
Product Net Height
52.5 in
Product Net Weight
1358.509 kg
Product Net Width
43 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
276 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
250 HP, 1800 RPM, Frame Size 449T, C-Face, 3 PH, TEFC, 460 V
Standards
Other
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: The IEEE 841 Severe Duty design provides extended life in harsh environments, reducing maintenance cycles and replacement costs for cement, mining, and heavy industry conveyors. In practice, this translates to lower downtime and higher asset availability on remote sites where service access is limited. Feature → Business Impact → Application: TEFC enclosure with IP56 protection guards against dust and moisture, enabling uninterrupted operation in dusty plants and outdoor installations, cutting emergency repairs and energy waste. Feature → Business Impact → Application: 449T frame and 3-phase 460 V supply deliver standard industrial compatibility with common drive systems, streamlining integration into packaging lines and material handling. Feature → Business Impact → Application: Foot-mounted, C-face mounting simplifies installation and alignment, reducing commissioning time and ensuring reliable belt and pump drives in compact or retrofit environments. Feature → Business Impact → Application: Premium efficiency (96.20%) lowers operating costs and supports regulatory incentives, making the motor attractive for large-scale automation projects and energy-constrained facilities. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time minimizes procurement delays for capital projects and maintenance outages, improving project schedules and ROI for mining and cement operations.
