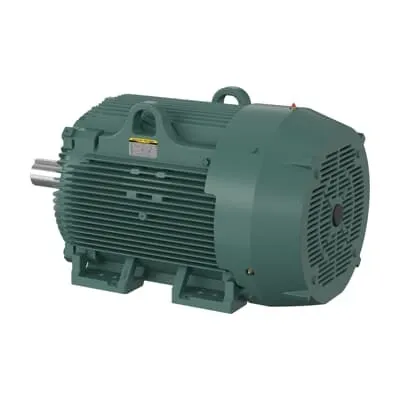

ABB 7BECP84409T-5 Severe Duty Motor - IEEE 841/IP56
Part Number: 7BECP84409T-5
Quick Summary
IEEE 841 Severe Duty motor is engineered to deliver reliable power for harsh, continuous-service pumping and conveyor applications. In demanding environments, downtime and overheating erode productivity; this motor is built to withstand tough operating conditions while maintaining performance. With IP56 ingress protection, TEFC enclosure, and premium efficiency, it provides robust protection and long life. The product’s USA origin and ready availability support fast procurement for OEMs and maintenance teams. Leveraging ABB's design heritage, this motor integrates smoothly into existing ABB automation ecosystems, delivering measurable value through energy efficiency, dependable start-up, and extended maintenance intervals.
Product Information
Extended Description
7BECP84409T-5 ABB: Severe Duty Motor 100 Hp 575 V (ECP84409T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1190RPM,3PH,60HZ,444T,A44064M
Ambient Temperature
40 °C
Bearing
6318 | Ball
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP84409T-5
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617434-660: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
ECP84409T-5
Gross Volume
105899.063 in³
Gross Weight
1885 lb
Horsepower Rating UL/CSA
100.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP56
Insulation Class
F
Invoice Description
100HP,1190RPM,3PH,60HZ,444T,A44064M,TEFC
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 100 HP, 1200 RPM, Frame Size 444T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84409T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
82 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
49.5 in
Product Net Height
52.5 in
Product Net Weight
1885 lb
Product Net Width
40.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
95 A
Rated Efficiency
95 %
Rated Speed
1190 r/min
Replaced Product ID (OLD)
7BA44-0000-4105
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
100 HP, 1200 RPM, Frame Size 444T, Standard, 3 PH, TEFC, 575 V
Standards
None
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
IEEE 841 Severe Duty motor design delivers exceptional reliability in harsh industrial environments, reducing unplanned downtime and maintenance costs. Feature → Business Impact → Application: The 100 HP, 575 V, 3-phase configuration at 60 Hz, combined with a 444T frame and 1190 rpm nominal speed, enables smooth integration with existing process equipment such as pumps and conveyors while sustaining peak torque under load. This translates to improved uptime and predictable performance for critical operations in mining, plastics, and metal-processing facilities. Feature → Application compatibility → The foot-mounted, horizontal mounting orientation and standard mounting bases simplify installation in retrofit projects and new lines, accelerating time-to-value for OEMs and service teams. Feature → Energy efficiency → With a rated efficiency of 95% and a power factor of 82%, this motor minimizes operating costs in continuous-duty applications, delivering measurable savings on electricity bills for large drives, fans, and blowers. Feature → Protection and durability → The TEFC enclosure and IP56 rating protect bearings and windings from dust and water ingress, enlarging service intervals in dusty plants and outdoor installations. Feature → Bearings and life → Ball bearing 6318 supports extended operation under heavy loads and demanding duty cycles, reducing maintenance interventions and enabling longer intervals between re-lubrication events. Feature → Compliance and design robustness → Insulation Class F, Temperature Class T3, and NEMA design code B align with industry standards, helping ensure regulatory compliance and compatibility with a broad ecosystem of components and spare parts. Feature → Ready-to-ship availability → Stocked At multiple warehouses with zero lead time enhances procurement efficiency, reducing project delays and accelerating deliveries to the field for rapid commissioning. The combination of rigidity in the frame, robust shaft diameter (3.38 in), and a 60-minute duty rating ensures dependable performance in continuous service, particularly for heavy-duty conveyors and industrial fans where exacting reliability is essential. This narrative reflects industry best practices for industrial motor selection, including implications for maintenance planning, spare parts strategy, and total cost of ownership when upgrading to IEEE 841 Severe Duty from legacy designs.
