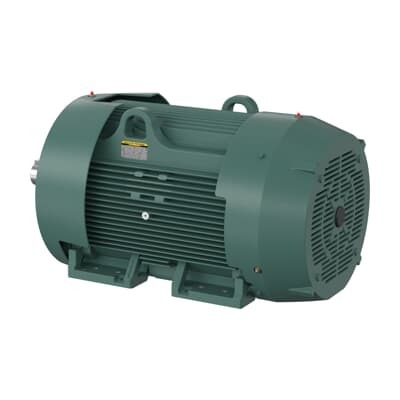

ABB 7BECP844156T-4 Severe Duty Motor - IEEE 841
Part Number: 7BECP844156T-4
Quick Summary
Severe Duty Motor is engineered to deliver reliable 150 HP performance at 460 V for continuous operation in demanding industrial environments. This ABB model is designed to minimize unplanned downtime and maximize uptime in heavy manufacturing, mining, and processing facilities. With rugged TEFC enclosure, IP56 protection, and explosion-protected capability, it thrives where harsh conditions and hazardous locations are the norm. The IEEE 841 standard alignment, UL/CSA (UR) listings, and premium efficiency rating help ensure compliance, energy savings, and long-term cost efficiency. For OEM integrations or retrofit projects, this motor provides predictable lead times, easy mounting, and a robust balance of performance and reliability to drive critical production lines.
Product Information
Extended Description
7BECP844156T-4 ABB: Severe Duty Motor 150 Hp 460 V (ECP844156T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1190RPM,3PH,60HZ,447T,TEFC,FO
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6318 | Ball
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP844156T-4
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617434-662: Dimension Sheet
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
ECP844156T-4
Gross Volume
80344 inÂł
Gross Weight
1148.95 kg
Horsepower Rating UL/CSA
150.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
150HP,1190RPM,3PH,60HZ,447T,TEFC,FOOT,
Lubrication
Regreasable
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 150 HP, 1200 RPM, Frame Size 447T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP844156T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
150 Hp
Power Factor
86 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
60.5 in
Product Net Height
32 in
Product Net Weight
1148.95 kg
Product Net Width
41.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
170 A
Rated Efficiency
95.80 %
Rated Speed
1190 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
150 HP, 1200 RPM, Frame Size 447T, Standard, 3 PH, TEFC, 460 V
Standards
None
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
460 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design reduces maintenance cycles and extends motor life in tough environments, delivering higher asset utilization and lower total cost of ownership. This translates to improved line uptime for conveyors, crushers, and pumps in mineral processing and material handling. Feature → 150 HP, 1190 RPM, 3PH, 60 Hz → Consistent torque and predictable performance under continuous duty, enabling smooth process control and reduced drive wear in packaging and woodworking lines. Feature → TEFC enclosure with IP56 → Superior ingress protection and weather resistance, simplifying installation in outdoor or dirty plant floors and reducing protective accessory needs. Feature → Foot-mounted 447T frame, 3.38 in shaft, and DOL starting → Easy retrofits and fast installation with standard mechanical footprints, minimizing commissioning time. Feature → Adjustable service factor of 1.15 and high efficiency (95.80%) → Energy savings and improved drive life, lowering operating costs in pumps and fans. Feature → Explosion-proof Class I, Group A-D and US-origin certification → Safe operation in hazardous locations while maintaining performance, ideal for chemical, refining, and heavy industrial sectors. Feature → Stocked availability across multiple warehouses (US, China) and 0-day lead time → Quick procurement and reduced project downtime, critical for capital projects and plant turnarounds.
