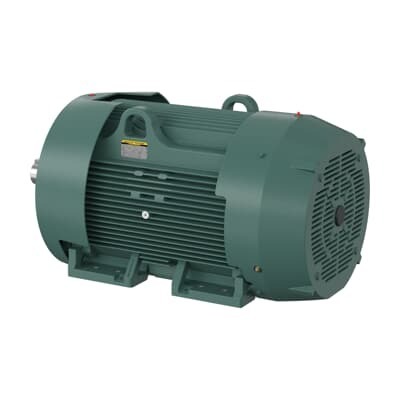

ABB 7BECP844156TR-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP844156TR-5
Quick Summary
IEEE 841 Severe Duty motor is a rugged, high-performance drive designed for continuous service in harsh industrial settings such as pumps, fans, conveyors, and processing lines. This ABB 7BECP844156TR-5 unit addresses downtime and unscheduled maintenance by delivering resilient operation in dusty, humid, and high-temperature environments. It carries UL/CSA certification with UR recognition and an IP56 TEFC enclosure, underscoring compliance and safe operation in demanding facilities. With 150 HP at 575 V and a 447T frame, it offers energy-efficient performance and reliable long-term service. For engineering teams, this motor translates to lower total cost of ownership, easier preventive maintenance, and predictable procurement aligned with OEM specifications.
Product Information
Extended Description
7BECP844156TR-5 ABB: Severe Duty Motor 150 Hp 575 V (ECP844156TR-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
150HP,1190RPM,3PH,60HZ,447T,TEFC,FO
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP844156TR-5
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617434-663: Dimension Sheet
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
ECP844156TR-5
Gross Volume
81364.5 in³
Gross Weight
1156.661 kg
Horsepower Rating UL/CSA
150.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
150HP,1190RPM,3PH,60HZ,447T,TEFC,FOOT,
Lubrication
Oil Forced
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 150 HP, 1200 RPM, Frame Size 447T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP844156TR-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
150 Hp
Power Factor
86 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
61.5 in
Product Net Height
31.5 in
Product Net Weight
1156.661 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
136 A
Rated Efficiency
95.80 %
Rated Speed
1190 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
150 HP, 1200 RPM, Frame Size 447T, Standard, 3 PH, TEFC, 575 V
Standards
Other
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
575 V
Feature → Business Impact → Application: IEEE 841 Severe Duty construction provides rugged durability and extended service life in harsh environments, reducing unplanned downtime and maintenance costs in continuous operation facilities. This motor’s 575 V, 3‑phase input supports high-power applications such as pumps and conveyors while delivering stable torque at 1190 r/min, improving process reliability and throughput. The TEFC enclosure and IP56 protection shield critical windings from dust and moisture, enabling outdoor or dirty plant floors without compromising performance. Oil-forced lubrication and a robust 447T frame deliver sustained efficiency and lower bearing wear, translating to fewer maintenance cycles in cement, mining, and chemical processing facilities. The 1.15 service factor and NEMA Design B code provide additional margin for startup transients and unbalanced loads, ensuring compatibility with standard DOL starting and remote monitoring in automation systems. Stock availability across multiple warehouses supports just-in-time procurement for OEMs and maintenance shops, minimizing downtime during project commissioning and spare parts planning. This aligns with long-tail keywords like “150 HP motor,” “575 V SEV duty motor,” and “IP56 TEFC motor” to support search visibility while maintaining technical integrity.
