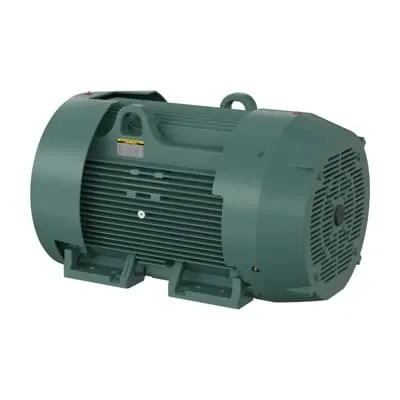

ABB 7BECP84416T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84416T-4
Quick Summary
ABB 7BECP84416T-4 motor provides robust power for heavy-duty industrial drives, ideal for process automation and material handling. This design targets reliability where downtime costs rise, helping you maintain production schedules under harsh conditions. The IEEE 841 Severe Duty standard, Premium Efficiency, and TEFC enclosure with IP56 protection ensure resilience against dust, moisture, and temperature swings. By aligning with these certifications, the motor delivers consistent performance in demanding environments while reducing energy consumption. With a 3-phase, 460 V supply and a 447TS frame, installation remains straightforward, and lifecycle costs stay predictable for maintenance teams and procurement managers alike.
Product Information
Extended Description
7BECP84416T-4 ABB: Severe Duty Motor 200 Hp 460 V (ECP84416T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,3600RPM,3PH,60HZ,447TS,TEFC,F
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP84416T-4
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617435-474: Dimension Sheet
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
ECP84416T-4
Gross Volume
142222.5 inÂł
Gross Weight
2433 lb
Horsepower Rating UL/CSA
200.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
IP Class
IP56
Insulation Class
F
Invoice Description
200HP,3600RPM,3PH,60HZ,447TS,TEFC,FOOT,
Lubrication
Regreasable
Made To Order
No
Medium Description
IEEE 841 Severe Duty, 200 HP, 3600 RPM, Frame Size 447Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP84416T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
63 in
Product Net Height
52.5 in
Product Net Weight
2433 lb
Product Net Width
43 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
213 A
Rated Efficiency
96.20 %
Rated Speed
3570 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
200 HP, 3600 RPM, Frame Size 447Ts, Standard, 3 PH, TEFC, 460 V
Standards
None
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design. Business Impact: Extends bearing life and reduces unplanned downtime in harsh environments such as cement, mining, and aggregate processing. Application: Reliable operation in demanding facilities where dust, vibration, and temperature spikes are common. Feature: Premium Efficiency (96.20%) and 3-phase 460 V input. Business Impact: Lower energy costs over the motor’s life and improved utility power factor during continuous operation. Application: High-load applications like pumps and fans where energy efficiency directly lowers total cost of ownership. Feature: TEFC enclosure with IP56 protection. Business Impact: Superior protection against dust, moisture, and incidental washdowns, minimizing corrosion and maintenance needs. Application: Wet or dusty plant floors, chemical environments, and outdoor installations. Feature: Foot-mounted 447TS frame with Direct On Line start. Business Impact: Quick, straightforward installation with minimal footprint and simplified electrical wiring, reducing commissioning time. Application: Belt-driven systems and line-side equipment requiring reliable startup. Feature: Regreasable bearings and rugged construction. Business Impact: Long service life and predictable maintenance intervals, lowering spare-part stock and downtime. Application: Continuous-duty conveyors, mixers, and handling equipment where uptime is critical. Additional note: Stocked at multiple warehouses and backed by 0-day lead times, enabling rapid project kickoff and supply-chain resilience for OEMs and end-users.
