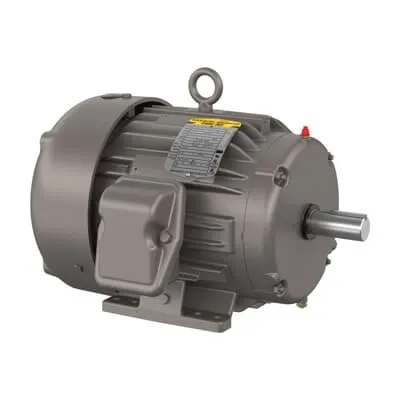

ABB 7BECR9054T Severe Duty Motor - IE3 Premium
Part Number: 7BECR9054T
Quick Summary
ABB's 7BECR9054T Severe Duty Motor is a 5 HP, 230 V three-phase TEFC motor engineered for crushers and other rugged industrial applications. This design delivers reliable continuous operation with a 1.25 service factor to absorb transient loads common in demanding materials handling. It carries strong North American certifications, including CSA US, CSA EEV, and NEMA Premium, with UR recognition for added compliance confidence. Its United States origin, direct-on-line starting, and robust iron frame support easy integration into existing plant electrical systems while meeting energy and safety standards. With stocked availability across multiple warehouses, it minimizes downtime and accelerates project timelines, delivering compelling total cost of ownership (TCO) advantages for capital-intensive operations.
Product Information
Extended Description
7BECR9054T ABB: Severe Duty Motor 5 Hp 230 V (ECR9054T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1760RPM,3PH,60HZ,184T,0642M,TEF
Ambient Temperature
40 °C
Bearing
6306, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECR9054T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYK520: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECR9054T
Gross Volume
5274.135 in³
Gross Weight
118 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,1760RPM,3PH,60HZ,184T,0642M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Crusher Severe Duty, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECR9054T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
74 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
118 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.2 A | 7.1 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B06K520X899G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 5 HP, 230/460 V, 60 Hz three-phase motor with 184T frame and TEFC enclosure reduces integration effort and ensures reliable performance in harsh environments. This configuration delivers predictable torque and startup behavior, enabling crushers and heavy conveyors to maintain line speed and throughput even under load surges. Application: mining, aggregate processing, and bulk material handling benefit from consistent performance in elevated ambient temperatures and dusty plant floors. Feature → Business Impact → Application: IE3 premium efficiency minimizes energy losses, lowering operating costs and reducing heat in cabinets and enclosures. Application: continuous-duty crushers and long-running conveyors gain measurable energy savings and longer component life in hot, duty-cycle-intensive facilities. Feature → Business Impact → Application: Direct-on-line starting simplifies motor control, reducing capital expenditure on soft starters while preserving fast, smooth startup for rapid shift of production lines. Application: plant-wide motor upgrades and retrofit projects. Feature → Business Impact → Application: 1.25 service factor provides headroom for overload conditions common in crushing cycles, reducing unplanned downtime and repair costs. Application: quarry and mineral processing where load fluctuations are routine. Feature → Business Impact → Application: Foot-mounted 184T frame with horizontal mounting and F1 orientation enables straightforward installation and vibration management, lowering commissioning time and startup risk. Application: retrofit into established basements and equipment bays with limited space. Feature → Business Impact → Application: CSA US, CSA EEV, NEMA Premium, UR certifications deliver regulatory assurance and faster procurement approvals. Application: projects requiring formal compliance for North American equipment standards. Throughout, long-tail keywords such as “5 HP motor 230V,” “TEFC enclosure motor,” “IE3 premium efficiency motor,” “184T frame industrial motor,” and “direct-on-line 3-phase motor” are integrated to support search visibility while preserving technical clarity for engineers and procurement teams.
Get a Quick Quote for a ABB 7BECR9054T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECR9054T?
Enquire Now
FAQs
The 7BECR9054T uses a foot-mounted, horizontal mounting arrangement with an 184T frame and a TEFC enclosure, simplifying installation in existing basements or equipment bays and ensuring compatibility with standard 184T mount patterns.
This is a 3-phase, 4-pole motor rated for 60 Hz operation with a voltage rating of 230 V / 460 V. It delivers 5 HP output, a synchronous speed of 1800 r/min and a rated speed of 1750 r/min, with a service factor of 1.25 and IE3 premium efficiency.
Yes. The 7BECR9054T is specifically marketed as a Crusher Severe Duty motor, designed for continuous operation in demanding crushing and conveying duties. Its rugged TEFC enclosure, 184T frame, and 1.25 service factor support high-load cycles common in mining and material handling.
The motor carries CSA US and CSA EEV certifications, UR recognition, and NEMA Premium efficiency labeling, ensuring compliance with North American safety and energy standards for industrial equipment.
The model is actively stocked in multiple warehouses (including US and international locations) with zero-day lead times indicated in supplier data. Warranty terms follow the standard warranty policy; if a warranty issue arises, the product must be returned per the policy, supporting faster ROI and reduced downtime.
