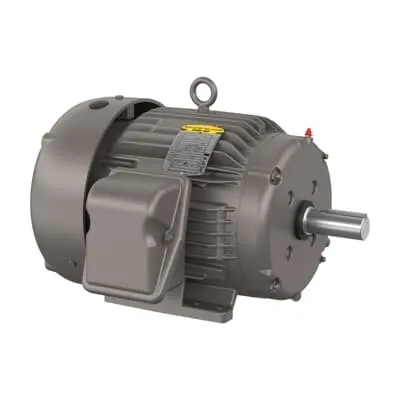

ABB 7BECR9104T Motor - NEMA Premium Efficiency
Part Number: 7BECR9104T
Quick Summary
ABB 7BECR9104T motor provides reliable 10 HP power for demanding crushing and mineral-processing applications. In harsh industrial environments, downtime and energy waste erode productivity; this severe-duty motor is designed to withstand dusty, high-load conditions with a TEFC enclosure and robust bearings. It carries UL/UR recognition, CSA EEV, and NEMA Premium efficiency ratings, aligning with strict safety and energy standards while simplifying compliance. With a 230/460 V, 60 Hz three-phase input and a frame size of 215T, it plugs into common industrial drives and legacy equipment. The result is a durable, easy-to-source drive that reduces maintenance costs and improves overall equipment effectiveness, supporting uptime goals and lower total cost of ownership.
Product Information
Extended Description
7BECR9104T ABB: Severe Duty Motor 10 Hp 230 V (ECR9104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1775RPM,3PH,60HZ,215T,0748M,TE
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECR9104T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYN167: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ECR9104T
Gross Volume
9144.346 inÂł
Gross Weight
240 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1775RPM,3PH,60HZ,215T,0748M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Crusher Severe Duty, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECR9104T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
240 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24.6 A | 12.3 A
Rated Efficiency
91.70 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B07N167Z114G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 10 HP, 4-pole design on a 215T frame provides strong starting torque for high-inertia loads. Business Impact: direct-on-line starting minimizes additional drive hardware and soft-start requirements, reducing system complexity and upfront costs. Application: ideal for crushers and heavy conveyors in mining and aggregate plants, where immediate torque supports process initiation without delays. Feature: TEFC enclosure and 6309 ball bearings deliver rugged dust protection and extended bearing life. Business Impact: lowers maintenance frequency and unplanned downtime, improving asset reliability. Application: harsh dusty environments such as crushing sites and material handling conveyors. Feature: Premium efficiency (91.70%) and insulation class F. Business Impact: lowers energy consumption during continuous operation, improving total cost of ownership. Application: long-run processes like milling and grinding lines that run at high duty cycles. Feature: 230/460 V, 60 Hz, 3-phase, foot-mounted 215T frame with 1.38 in shaft diameter. Business Impact: flexible installation with broad compatibility to existing gear motors and VFDs, simplifying retrofits and replacements. Application: retrofit projects and new installs in industrial plants with standard 230/460 V service. Feature: Synchronous speed 1800 r/min and rated speed 1760 r/min with continuous duty. Business Impact: predictable performance under continuous operation, reducing process variance. Application: continuous-duty crusher/separator lines where stable speed improves throughput. Feature: Stocked At Warehouses and 0 day Lead Time. Business Impact: rapid sourcing and minimal downtime during spares shortages. Application: critical spare motors for uptime assurance in mining, cement, and mineral processing.
Get a Quick Quote for a ABB 7BECR9104T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECR9104T?
Enquire Now
FAQs
Yes. The 7BECR9104T is specified for 230/460 V, 60 Hz three-phase operation and features a 215T frame with a foot-mounted configuration, making it compatible with standard industrial drives and existing mounting arrangements. Its direct-on-line starting capability further simplifies integration with legacy equipment.
Key specs include 10 HP output, 4 poles, rated speed of 1760 r/min, synchronous speed of 1800 r/min, and a continuous-duty rating. The motor uses TEFC enclosure, frame size 215T, and a 60 Hz operating frequency to deliver reliable torque and stable control in high-load crushing processes.
The motor carries UL/UR recognition, CSA EEV, and NEMA Premium efficiency certification. These markings support safety, energy efficiency, and regulatory compliance, reducing validation time for procurement and enabling easier quality assurance across North American facilities.
Its premium efficiency lowers energy costs during long-running cycles, while its durable TEFC enclosure and bearings reduce maintenance frequency. Combined with 0-day lead time and multi-warehouse stocking, the motor minimizes downtime and inventory risk, delivering faster payback in mining and crushing operations.
Plan for a foot-mounted installation on a 215T frame with a 1.38 in shaft diameter. Ensure 230/460 V supply, 60 Hz service, and a suitable direct-on-line starter. Consider ambient temperature (up to 40 °C) and mounting clearances to accommodate the TEFC cooling and bearing assembly for reliable operation.
