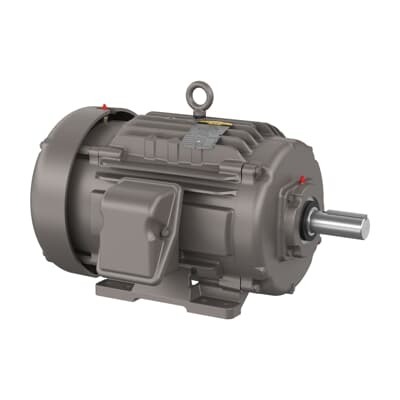

ABB 7BECR9106T Motors & Drives - NEMA Premium Efficiency
Part Number: 7BECR9106T
Quick Summary
ABB 7BECR9106T is a severe-duty motor delivering 10 HP for crushers and heavy processing lines. This 60 Hz, 230/460 V dual-voltage machine is built for continuous operation in demanding environments. Its TEFC enclosure and rugged 256T frame protect bearings and windings from dust, moisture, and thermal stress, reducing unscheduled downtime. The design aligns with NEMA Premium efficiency standards and carries CSA EEV and UR certifications, providing clear compliance signals for global installations. By combining reliability with high efficiency, the 7BECR9106T helps lower energy costs while meeting stringent maintenance schedules. For procurement teams, its stock availability and zero-day lead time improve project timelines and respond to just-in-time manufacturing demands.
Product Information
Extended Description
7BECR9106T ABB: Severe Duty Motor 10 Hp 230 V (ECR9106T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1175RPM,3PH,60HZ,256T,0962M,TE
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECR9106T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYL575: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ECR9106T
Gross Volume
14448.906 in³
Gross Weight
161.025 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1175RPM,3PH,60HZ,256T,0962M,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Crusher Severe Duty, 10 HP, 1200 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECR9106T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
74 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
161.025 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A | 14 A
Rated Efficiency
91 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
1.63 in
Short Description
10 HP, 1200 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: Severe-duty design with TEFC enclosure and 256T frame → Business Impact: Enhanced reliability in harsh environments reduces unplanned downtime and maintenance costs → Application: Crushers, heavy conveyors, and mineral processing lines benefit from consistent performance in dust-filled, high-heat zones. In practice, maintenance cycles shorten while mean time between failures improves. Feature: Premium efficiency (NEMA Premium) with 91% rated efficiency and PF 74% → Business Impact: Lower energy consumption and operating costs over the motor’s life cycle → Application: Continuous operation in grinding and crushing operations where energy intensity is high, delivering measurable savings. Feature: Direct-on-line starting and 3-phase operation → Business Impact: Simpler electrical installation and reduced front-end hardware costs → Application: Rapid deployment on machine bases with standard VFDs or direct supply lines in stone, ore, and aggregate plants. Feature: Foot-mounted, horizontal mounting with F1 position and 256T frame → Business Impact: Easy retrofits and straightforward alignment with existing baselines and gearboxes → Application: Retrofit projects and new-builds in bulk material handling where alignment accuracy matters. Feature: Temperature tolerance up to 40 °C and robust bearings (6311) → Business Impact: Predictable performance in warm plant rooms and outdoors, extending bearing life → Application: Outdoor crushers and sumps where ambient conditions vary. Feature: Certifications (NEMA Premium, CSA EEV, UR, CCSA US) → Business Impact: Streamlined approval for multi-region projects and safer procurement → Application: Global installations across North America and cross-border supply chains.
