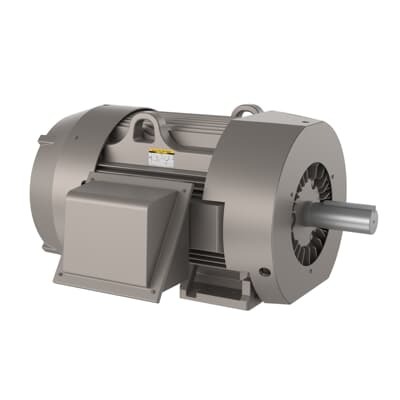

ABB 7BECR92004T-4 Severe Duty Motor - CSA EEV
Part Number: 7BECR92004T-4
Quick Summary
Severe Duty Motor ABB 7BECR92004T-4 is a robust 200 HP, 460 V three-phase drive solution designed for crushers and heavy industrial processes. It delivers reliable performance in demanding environments where downtime and overheating threaten productivity. The unit carries CSA EEV certification, Premium Efficiency (NEMA 12-12), and a TEFC enclosure, aligning with stringent regulatory and energy-performance standards. With a 447T frame and 1785 RPM at 60 Hz, this motor integrates smoothly with existing ABB Baldor-Reliance systems while simplifying maintenance. For procurement and engineering teams, the model is stocked across multiple warehouses with zero-day lead times, enabling faster project timelines and predictable lifecycle costs in mining, cement, and aggregate applications.
Product Information
Extended Description
7BECR92004T-4 ABB: Severe Duty Motor 200 Hp 460 V (ECR92004T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,1785RPM,3PH,60HZ,447T,A44106M
Ambient Temperature
40 °C
Bearing
6318 | Ball
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECR92004T-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
617427-355: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
ECR92004T-4
Gross Volume
82530 in³
Gross Weight
2449.999 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
200HP,1785RPM,3PH,60HZ,447T,A44106M,TEFC
Made To Order
No
Maximum Speed
3600 r/min
Medium Description
Crusher Severe Duty, 200 HP, 1800 RPM, Frame Size 447T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECR92004T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
87 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
65.5 in
Product Net Height
30 in
Product Net Weight
2449.999 lb
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
225 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Replaced Product ID (OLD)
7BP44G1812
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
200 HP, 1800 RPM, Frame Size 447T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: 200 HP at 460 V in a 3-phase configuration. Business Impact: High torque and compatibility with standard industrial drives reduce equipment sizing uncertainty and accelerate commissioning. Application: Crushers, conveyors, and heavy duty processing lines benefit from immediate integration with existing power systems. Feature: TEFC enclosure with 447T frame. Business Impact: Dust- and moisture-protected operation in harsh environments lowers maintenance frequency and extends motor life. Application: Quarry, cement, and mining sites where exposure to particulates and temperature swings is common. Feature: Premium Efficiency (NEMA 12-12) and Insulation Class F. Business Impact: Energy savings and reduced operating costs over the motor’s lifecycle while complying with efficiency regulations. Application: Continuous-duty operations that run around the clock with strict energy targets. Feature: 1785 r/min (synchronous 1800 r/min), 60 Hz, 4-pole design. Business Impact: Predictable performance in standardized plant drives, improving process synchronization and belt/gear alignment. Application: Material handling and crushing circuits requiring synchronized speeds. Feature: Direct On Line starting and 60 Min duty time. Business Impact: Simplified start-up with lower installation costs and robust transient performance during peak loads. Application: Facilities employing simple control schemes and where quick starts minimize downtime. Feature: Foot-mounted, horizontal mounting (F1) and dimension compatibility (447T). Business Impact: Easy retrofits and straightforward mechanical engineering integration, reducing installation risk. Application: Retrofit projects and new builds with existing 447T footprint. Feature: Bearing type 6318 Ball and 3-phase design. Business Impact: Long bearing life and reliable rotation in demanding cycles, decreasing unscheduled maintenance. Application: Crusher drives, material handling, and heavy-duty fans. Feature: Stocked At Multiple Warehouses (US and global). Business Impact: Zero-day lead times and rapid fulfillment improve project schedules and reduce inventory risk. Application: Procurement teams seeking dependable on-hand inventory for critical operations. Overall, the ABB 7BECR92004T-4 delivers measurable outcomes: higher uptime, predictable maintenance, and energy-conscious operation across high-load industrial processes.
Get a Quick Quote for a ABB 7BECR92004T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECR92004T-4?
Enquire Now
FAQs
Yes. The 7BECR92004T-4 is a 200 HP, 460 V three-phase motor with a TEFC enclosure and 447T frame, designed for heavy-duty crushers and similar processes. It aligns with standard Baldor-Reliance components and can be integrated into common drive architectures; consult the dimension diagram 617427-355 to verify mounting clearances and shaft alignment during retrofits.
Key specs include 200 HP output, 460 V voltage rating, 60 Hz frequency, 1785 r/min rated speed (synchronous 1800 r/min), 3 phases, 4 poles, and a rated current of 225 A. It features Premium Efficiency (NEMA 12-12) and Insulation Class F, with a service factor of 1.15 and Direct On Line starting for straightforward commissioning.
Yes. The motor is engineered for continuous duty with a 60-minute duty time rating and a TEFC enclosure suitable for dusty, humid, and temperature-varied environments. Its 447T frame, 40 °C ambient tolerance, and robust bearings support long service life in demanding mining and processing lines, making it well-suited to crushers and conveyors.
The unit carries CSA EEV certification and meets Premium Efficiency requirements per NEMA guidelines. It uses a TEFC enclosure and conforms to industry standards for electric motors, providing regulatory assurance for installation in North American facilities and other markets that recognize CSA EEV.
Maintenance needs are minimized by the TEFC enclosure and durable 6318 ball bearings, with a long service life for continuous operations. Procurement benefits include stock availability across multiple warehouses (including US and global sites) and a 0-day lead time, aiding project schedules and reducing downtime costs. Consider dimension diagram 617427-355 for retrofits and spare-part planning.
