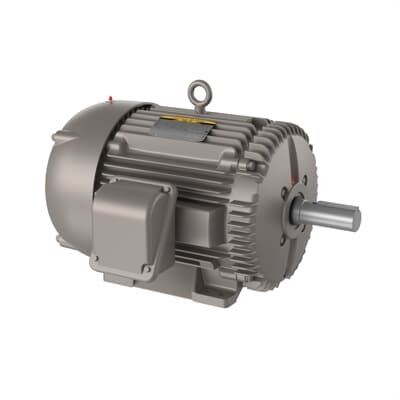

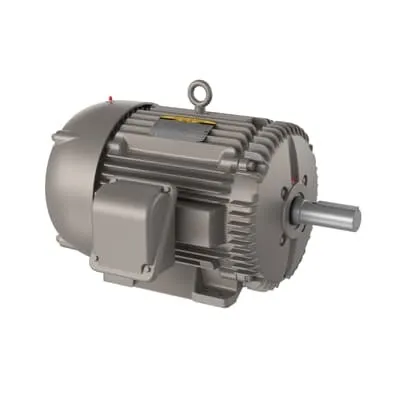

ABB 7BECR9256T Severe Duty Motor - NEMA Premium
Part Number: 7BECR9256T
Quick Summary
ABB 7BECR9256T Severe Duty Motor is a 25 HP, 230 V three-phase drive designed for continuous operation in demanding industrial environments. This rugged TEFC frame (324T) delivers reliable torque for crushers, conveyors, and heavy processing lines while minimizing downtime and maintenance costs. Certified for CSA US, CSA EEV, NEMA Premium efficiency, and UR recognition, it confirms compliant, high-performance operation. With dual-voltage 230/460 V capability and a 1180 r/min rated speed, the motor fits standard plant architectures and supports scalable automation. For procurement teams seeking proven reliability and energy savings, this model offers a strong balance of performance, compliance, and lifecycle value.
Product Information
Extended Description
7BECR9256T ABB: Severe Duty Motor 25 Hp 230 V (ECR9256T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1180RPM,3PH,60HZ,324T,1272M,TE
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECR9256T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYH518: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
ECR9256T
Gross Volume
18748.226 in³
Gross Weight
630 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
25HP,1180RPM,3PH,60HZ,324T,1272M,TEFC,F1
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Crusher Severe Duty, 25 HP, 1200 RPM, Frame Size 324T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECR9256T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
74 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
630 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68 A | 34 A
Rated Efficiency
93 %
Rated Speed
1180 r/min
Replaced Product ID (OLD)
7B12H518Y877G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
2.13 in
Short Description
25 HP, 1200 RPM, Frame Size 324T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 25 HP output at 1180 r/min on a 60 Hz, 3-phase supply provides robust starting torque and steady speed control, reducing voltage drop during start-up and improving process stability on crushers and conveyors. This translates to higher throughput and lower equipment wear in demanding lines. Application: Heavy-duty crushing and material handling setups benefit from predictable torque curves and reliable motor responsiveness in peak-load conditions.Feature → Business Impact → Application: TEFC enclosure on a 324T frame delivers superior enclosure protection in dusty, humid, or abrasive environments. This minimizes ingress-related wear and maintenance, lowering total cost of ownership. Application: Mining, aggregate, and mineral-processing plants where dust and moisture are constants.Feature → Business Impact → Application: Premium efficiency (NEMA Premium) with insulation class F reduces energy consumption and heat generation, yielding measurable energy savings and cooler operation. Application: Continuous-duty drives across conveyors and processing lines where energy performance directly affects operating costs.Feature → Business Impact → Application: Dual-voltage design (230/460 V) and a 2.13 in shaft diameter with foot-mounted mounting position (F1) simplify retrofits and new installations. Application: Modernizing legacy lines or integrating into new plant sections with minimal mechanical adaptation.Feature → Business Impact → Application: Direct-on-line starting and a 60 min duty time rating support fast, straightforward commissioning with reduced soft-start requirements. Application: Plant-wide drives where rapid startup reduces line idle time and improves overall equipment availability.Feature → Business Impact → Application: The 324T frame, 630 lb gross weight, and standardized mounting orientation enable quick installation, alignment, and service access. Application: OEM equipment and aftermarket replacements where common mounting footprints reduce installation time and spare-part inventories.
