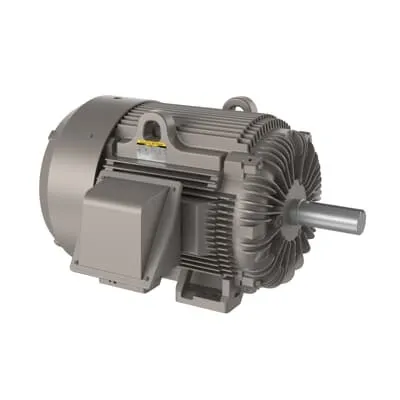

ABB 7BECR9606TR Motor - CSA EEV Premium Efficiency
Part Number: 7BECR9606TR
Quick Summary
7BECR9606TR is a severe-duty motor designed for crushers and other heavy-load applications in demanding processing environments. Engineers often face long lead times, supply variability, and the need for robust, code-compliant motors that endure harsh conditions. This model carries CSA EEV certification, NEMA-standard design, and a Premium Efficiency rating, all within a TEFC enclosure for reliable operation. With 60 HP, 1185 RPM, and a 404T frame, it aligns with common plant specs while supporting dual voltage operation (230/460 V). Stocked across multiple warehouses and backed by zero-day lead time in this dataset, it enables faster project execution and predictable procurement.
Product Information
Extended Description
7BECR9606TR ABB: Severe Duty Motor 60 Hp 230 V (ECR9606TR)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1185RPM,3PH,60HZ,404T,A40064M,
Ambient Temperature
40 °C
Bearing
NU316, Roller
Bearing NDE
6316
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECR9606TR
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617429-501: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
404
Frequency (f)
60 Hz
Global Commercial Alias
ECR9606TR
Gross Weight
599.649 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
60HP,1185RPM,3PH,60HZ,404T,A40064M,TEFC
Made To Order
No
Maximum Speed
3000 r/min
Medium Description
Crusher Severe Duty, 60 HP, 1200 RPM, Frame Size 404T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECR9606TR)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
404T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
Crusher Severe Duty
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
599.649 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
141 A | 70.7 A
Rated Efficiency
94.50 %
Rated Speed
1185 r/min
Replaced Product ID (OLD)
7BP40G1702
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
2.88 in
Short Description
60 HP, 1200 RPM, Frame Size 404T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Premium Efficiency design delivers measurable energy savings and lower operating costs for continuous-duty tasks such as conveyors and crushers. Business impact: reduced energy consumption and lower waste heat when operating at full load; Application: mining, aggregate, and mineral processing lines. Frame 404T with TEFC enclosure provides rugged protection against dust, dirt, and moisture; Business impact: longer motor life and reduced maintenance intervals; Application: outdoor or harsh indoor environments. Dual voltage 230/460 V and 60 Hz compatibility simplify integration with existing plant power networks; Business impact: fewer transformers and simplified control wiring; Application: retrofits and new installs with variable supply conditions. Direct On Line starting plus a 1.25 service factor enhances startup reliability under load with minimal drive complexity; Business impact: reduced switchgear and soft-starter requirements; Application: crushers and feeders in the crushing circuit. NEMA Design Code A, Insulation Class F, and rated speed of 1185 r/min provide reliable performance under continuous duty; Business impact: predictable torque and thermal margin; Application: heavy-load conveyors and crushers. Stock availability across multiple warehouses reduces procurement risk and accelerates commissioning; Business impact: faster project timelines and lower stockout risk. These attributes collectively support a lower total cost of ownership while meeting stringent compliance and performance benchmarks.
Get a Quick Quote for a ABB 7BECR9606TR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECR9606TR?
Enquire Now
FAQs
7BECR9606TR is a dual-voltage, 3-phase motor rated for 230/460 V at 60 Hz with Direct On Line starting. It supports standard foot-mounted installation on a 404T frame and horizontal mounting. When integrating into an existing panel, verify the conduit/gland box alignment with TEFC enclosures and ensure the drive wiring matches the dual-voltage configuration to avoid voltage mismatches and thermal issues.
The motor delivers 60 HP with a rated speed of 1185 r/min (Synchronous 1200 r/min) and a service factor of 1.25, suitable for continuous duty. With Premium Efficiency and a robust TEFC enclosure, you get steady torque, lower heat generation, and improved thermal margin during peak loads. This translates to improved uptime and fewer unscheduled maintenance events in demanding material-handling environments.
The 7BECR9606TR carries CSA EEV certification and adheres to NEMA design considerations, supporting reliable performance in industrial facilities. The motor’s Premium Efficiency rating further aligns with energy-compliance requirements and cost-of-ownership reductions, while the TEFC enclosure provides enclosure protection suitable for harsh environments.
Lead time is listed as 0 day, and the model is stocked at multiple warehouses (including US and international hubs). This enables rapid quote-to-order cycles and faster on-site commissioning, reducing project delays and enabling just-in-time procurement for critical operations.
Warranty terms indicate product returns must be handled under warranty conditions. The motor’s robust design—TEFC enclosure, high-efficiency insulation, and solid bearings—facilitates longer service intervals with regular checks on shaft alignment and bearing condition. For ROI, plan for routine inspection intervals and ensure stock for spares to minimize downtime during maintenance windows.
