ABB ECS100T4H5EB4 ECM IMD - IE5 Efficiency
Part Number: 7BECS100T4H5EB4
Quick Summary
ABB ECS100T4H5EB4 ECM IMD is a 5 HP, 460 V, 3‑phase motor with an integrated drive, delivering precise speed control for conveyors, pumps, and fans in industrial environments. This compact solution reduces system complexity by combining motor and drive in a single package, simplifying wiring and cabinet space. If energy efficiency and predictable performance are priorities, the IE5‑rated motor delivers measurable savings in continuous‑duty applications. The enclosure is TEFC with a C‑Face mounting, built to meet rugged NEMA‑style expectations for harsh factory floors. With stocked availability across multiple warehouses, 0‑day lead times in many regions, and direct‑on‑line starting, project timelines and maintenance planning improve while reliability stays high.
Product Information
Extended Description
7BECS100T4H5EB4 ABB: ECM IMD 5 Hp 460 V (ECS100T4H5EB4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,184TC,TEFC,TOP
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T4H5EB4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H5EB4
Gross Volume
8416.408 in³
Gross Weight
98 lb
Insulation Class
F
Invoice Description
5HP,1800RPM,3PH,60HZ,184TC,TEFC,TOP
Made To Order
No
Medium Description

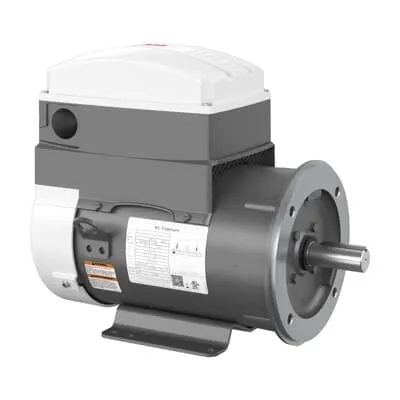

ECM IMD, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS100T4H5EB4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
98 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.30 A
Rated Efficiency
93.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature → The ECM IMD integrates motor and drive in a single package, reducing wiring, panels, and install time. Business Impact → Lower installation costs, faster commissioning, and easier maintenance planning. Application → Ideal for conveyors, pumps, and fans where space is at a premium. Feature → IE5 efficiency rating delivers significant energy savings over traditional motors in continuous‑duty operation. Business Impact → Lower energy costs, reduced heat generation, and improved thermal management in tight control cabinets. Application → Suitable for HVAC feeders, process lines, and material handling systems. Feature → TEFC enclosure, frame 184TC, and C‑Face mounting provide rugged protection and simple retrofit capability. Business Impact → Greater reliability in dirty or dusty environments and straightforward integration into existing plant layouts. Application → Widely used in industrial conveyors and pumps. Feature → 3‑phase, 60 Hz, 460 V operation with 1800 rpm synchronous speed and 5 HP output. Business Impact → Predictable performance, consistent torque, and straightforward compatibility with standard motor controls. Application → Fits common plant drives and switchgear setups. Feature → Direct on line starting compatibility and 0‑day lead time availability. Business Impact → Faster startups, reduced spare parts needs, and accelerated project timelines. Application → Suitable for rapid deployment in high‑mix manufacturing environments. Feature → Robust mechanical specs: shaft diameter 1.13 in, weight 98 lb, insulation class F, and frame size 184TC. Business Impact → Reliable coupling with belts and pulleys, easier alignment, and durable operation in challenging industrial settings. Application → Used in high‑demand conveyors, fans, and pump assemblies with standard mounting footprints.
