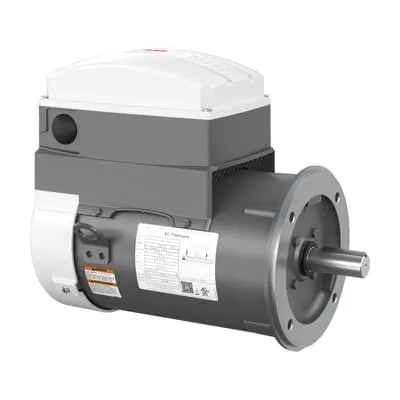

ABB ECS100T4H5EC4 ECM IMD - 5HP 1800RPM 3PH 60Hz IE5
Part Number: 7BECS100T4H5EC4
Quick Summary
ABB ECS100T4H5EC4 ECM IMD delivers efficient 5 HP power for 460 V, 3-phase systems. This module is designed for industrial automation applications such as conveyors, pumps, and machine tools where reliable performance and energy savings matter. Engineers face rising energy costs, downtime, and maintenance uncertainty; this solution reduces waste with IE5 efficiency and a robust TEFC enclosure. The product aligns with NEMA standards and offers C-Face mounting for straightforward integration, along with an 1800 rpm base speed and 184TC frame for compatibility with standard belts and pulleys. Global sourcing from US-origin stock further minimizes lead times and total cost of ownership.
Product Information
Extended Description
7BECS100T4H5EC4 ABB: ECM IMD 5 Hp 460 V (ECS100T4H5EC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,184TC,3632B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T4H5EC4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H5EC4
Gross Volume
8416.408 in³
Gross Weight
98 lb
Insulation Class
F
Invoice Description
5HP,1800RPM,3PH,60HZ,184TC,3632B,TEFC,F1
Made To Order
No
Medium Description
ECM IMD, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS100T4H5EC4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
98 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.30 A
Rated Efficiency
93.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature: IE5 efficiency class improves energy usage in continuous-duty operation. Business Impact: Lower operating costs over the motor’s life and reduced heat generation, enhancing plant efficiency. Application: conveyors and bottling lines where motors run for long shifts and energy budgets are tight. Feature: 5 HP, 1800 rpm, 460 V 3-phase design. Business Impact: Seamless integration with common industrial power supplies and equipment, minimizing wiring changes and panel space. Application: pumps, fans, and machine tools requiring standard 460 V supply and 60 Hz operation. Feature: TEFC enclosure with 40 °C ambient rating. Business Impact: Enhanced protection against dust, moisture, and contaminants, reducing downtime and maintenance costs. Application: harsh factory floors, material handling, and outdoor installations with limited enclosure cooling. Feature: Foot-mounted, C-Face 184TC frame with 1.13 in shaft diameter. Business Impact: Easy OEM fit and precise drive alignment, reducing installation time and misalignment risk. Application: belt drives, conveyors, and gear train interfaces in compact layouts. Feature: Direct-on-Line starting and 3-phase 460 V operation. Business Impact: Simplified start-up, lower initial hardware costs, and immediate load response, improving line throughput. Application: production lines where rapid startup is essential and VFDs are not required. Feature: Stocked at multiple warehouses and US origin. Business Impact: Short lead times, reliable supply, and lower total cost of ownership for critical projects. Application: urgent replacements, OEM rebuilds, and global manufacturing footprints.
