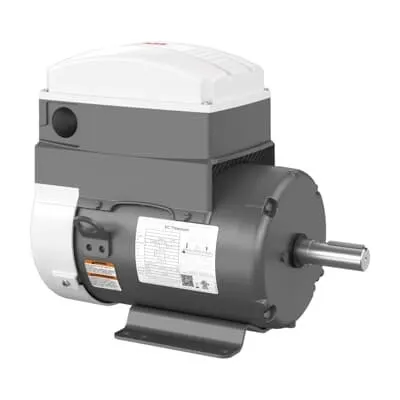

ABB ECS100T4H7EF4 ECM IMD Motor, 460 V - IE5
Part Number: 7BECS100T4H7EF4
Quick Summary
ABB ECS100T4H7EF4 ECM IMD motor, 460 V, 7.5 HP, 1800 RPM, is designed for reliable, energy-efficient operation in industrial drives and process lines. This integrated solution simplifies installation and control in demanding environments. Operators often face rising energy costs, motor overheating, and inconsistent starts under inverter control; this model directly addresses those challenges with IE5 efficiency, a TEFC enclosure, and a robust 184T frame. The design aligns with widely adopted industry standards and supports inverter starting, enabling smooth variable-speed operation. For OEMs and maintenance teams, the result is predictable performance, lower maintenance, and a favorable total cost of ownership.
Product Information
Extended Description
7BECS100T4H7EF4 ABB: ECM IMD 7.50 Hp 460 V (ECS100T4H7EF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,184T,TEFC,TO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS100T4H7EF4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H7EF4
Gross Volume
8416.408 in³
Gross Weight
106 lb
Invoice Description
7.5HP,1800RPM,3PH,60HZ,184T,TEFC,TOP
Made To Order
No
Medium Description
ECM IMD, 7.5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS100T4H7EF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Product Name
ECM IMD
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
106 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Efficiency
94 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
INVERTER SPECIAL
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
IE5 efficiency delivers measurable energy savings in continuous-duty applications, reducing operating costs over the motor’s life and improving system COP in conveyors, pumps, and fans. Benefit: lower energy bills and cooler operation under heavy load; Application: long-running material handling lines. TEFC enclosure protects critical components from dust, moisture, and airborne contaminants, lowering maintenance intervals and extending motor life in dirty shop environments; Application: packaging and processing lines where washdown or dust exposure is common. Frame size 184T and 1.13 in shaft diameter provide robust mechanical compatibility with common couplings and belt drives, enabling straightforward installation and reduced downtime during retrofit projects; Application: retrofits and new equipment assemblies that demand standard frame geometry. Inverter-special starting and 3-phase, 60 Hz operation ensure smooth acceleration and reduced electrical stress when paired with VFDs, improving drive efficiency and motor longevity; Application: robotic feeders and automated conveyors. The product’s 1800 r/min nominal speed, NEMA Design B characteristics, and 3P architecture support reliable performance in continuous-duty duty cycles, while the Baldor-Reliance heritage guarantees consistent quality and easier spare-parts planning; Application: OEM production lines and aftermarket service where uptime is critical. Compatibility with 460 V three-phase supply and standard mounting options simplifies installation and commissioning, avoiding costly field modifications and enabling quick integration into existing electrical architectures.
