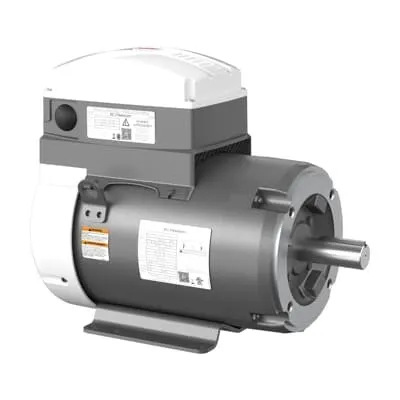

ABB ECS100T4H7FB4 ECM IMD - IE5 Efficiency at 460V
Part Number: 7BECS100T4H7FB4
Quick Summary
ABB ECS100T4H7FB4 ECM IMD is a high-efficiency motor for continuous 3-phase drives in manufacturing and processing environments. This compact solution helps minimize energy consumption and downtime in conveyors, pumps, and fans. For engineers facing rising energy costs and tight maintenance windows, the ECM IMD offers a straightforward path to reliable performance. It meets key industry benchmarks, including IE5 efficiency, a rugged TEFC enclosure, and a 213TC frame that supports flexible mounting. With a Baldor-Reliance lineage and US origin, it also aligns with global sourcing strategies. The combination of stock availability, standard lead times, and durable construction supports procurement by value and technical teams alike.
Product Information
Extended Description
7BECS100T4H7FB4 ABB: ECM IMD 7.5 Hp 460 V (ECS100T4H7FB4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,213TC,TEFC,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T4H7FB4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H7FB4
Gross Volume
10388.25 in³
Gross Weight
167 lb
Insulation Class
F
Invoice Description
7.5HP,1800RPM,3PH,60HZ,213TC,TEFC,TOP
Made To Order
No
Medium Description
ECM IMD, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS100T4H7FB4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
92 %
Product Name
ECM IMD
Product Net Depth / Length
27 in
Product Net Height
21.375 in
Product Net Weight
167 lb
Product Net Width
18 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.9 A
Rated Efficiency
94.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
IE5 efficiency delivers meaningful energy savings across extended duty cycles, reducing operating costs for conveyors and pumps in automated production lines. This translates to lower utility bills and a quicker return on investment in new or retrofitted machinery. The TEFC enclosure provides robust protection against dust and moisture, resulting in reduced maintenance needs in harsh factory environments and improved uptime for critical fans and pumps. Frame size 213TC with a foot-mounted, horizontal orientation simplifies installation and retrofits, enabling seamless integration with existing conveyors and gearboxes while supporting common coupling and mounting standards. The 1.38 in shaft diameter and 1800 r/min speed optimize coupling compatibility and drive performance, reducing alignment time during service. Direct-on-line starting offers straightforward electrical wiring and faster startup, minimizing downtime during changeouts and new installations. Stocked at multiple warehouses with 0-day lead times supports rapid deployment for just-in-time manufacturing and urgent upgrade projects.
