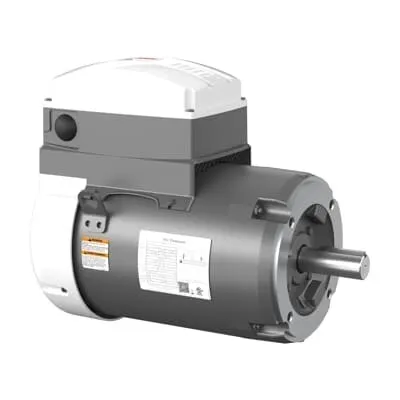

ABB ECS100T4H7FC4 ECM IMD - 7.5HP, 460V, IE5
Part Number: 7BECS100T4H7FC4
Quick Summary
ABB ECS100T4H7FC4 ECM IMD is a 7.5 HP, 3-phase motor designed for industrial drives in manufacturing and processing lines. This model addresses the common challenges of reliability and energy cost in high-speed equipment by delivering robust performance with minimal maintenance. The motor aligns with key standards, including NEMA compliance and UL/CULUS/WEEE certifications, and features IE5 efficiency for lower operating costs. With stock availability across multiple warehouses and a zero-day lead time, it supports rapid deployment, while the TEFC enclosure and C-Face mounting simplify installation in tight or demanding environments. In short, it combines performance, standards alignment, and supply-chain readiness to boost project timelines and ROI.
Product Information
Extended Description
7BECS100T4H7FC4 ABB: ECM IMD 7.5 Hp 460 V (ECS100T4H7FC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,213TC,3730B,
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T4H7FC4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H7FC4
Gross Volume
10388.25 in³
Gross Weight
167 lb
Insulation Class
F
Invoice Description
7.5HP,1800RPM,3PH,60HZ,213TC,3730B,TEFC
Made To Order
No
Medium Description
ECM IMD, 7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face Mounting, 3 Phase, 460 V, 60 Hz (ECS100T4H7FC4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
92 %
Product Name
ECM IMD
Product Net Depth / Length
27 in
Product Net Height
21.375 in
Product Net Weight
167 lb
Product Net Width
18 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.9 A
Rated Efficiency
94.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tc, C-Face, 3 PH, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: IE5 efficiency delivers measurable energy savings and reduced operating costs on continuous-duty drives, translating to lower total cost of ownership for conveyors and pumps. This high-efficiency profile supports compliance with modern energy programs and sustainability goals, while maintaining consistent torque at 1800 rpm in 60 Hz systems. Application: long-running industrial processes and high-output production lines. Feature → Business Impact → Application: TEFC enclosure with a robust 213TC frame increases protection in dirty, humid, or dusty environments, reducing unscheduled downtime and extending bearing life. Application: packaging lines, mixers, and material-handling equipment. Feature → Business Impact → Application: 460 V, 3-phase power compatibility simplifies integration with standard plant electrical infrastructure, lowering wiring complexity and installation time. Application: fans, pumps, and process automation units. Feature → Business Impact → Application: C-Face mounting and 213TC frame ease retrofit and replacement projects, enabling fast switchover and minimal machine downtime. Application: retrofit of legacy equipment and OEM drive systems. Feature → Business Impact → Application: Direct-on-line starting minimizes the need for soft-starters in appropriate loads, reducing upfront equipment costs and panel complexity. Application: early-stage line upgrades and cost-conscious plant expansions. Feature → Business Impact → Application: Stocked At Warehouses and 0 Lead Time capability shorten downtime risks and accelerate procurement for critical spares. Application: serviceable spare motors for manufacturers with strict uptime requirements.
