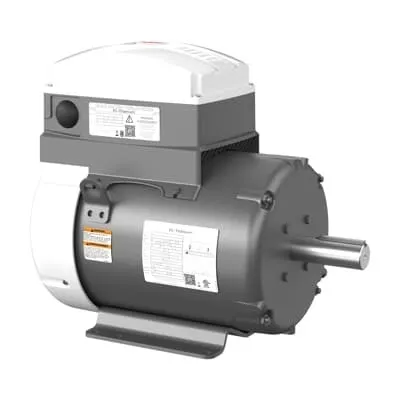

ABB ECS100T4H7FF4 ECM IMD Motor - IE5 Efficiency
Part Number: 7BECS100T4H7FF4
Quick Summary
ABB ECS100T4H7FF4 ECM IMD motor delivers reliable 7.5 HP drive for continuous 460 V, 3‑phase applications like pumps and conveyors. Long-term energy costs and drive compatibility with modern inverters are common upgrade hurdles. Key certifications include IE5 efficiency, NEMA standards compliance, and inverter-special starting capability, ensuring performance under dynamic loads. With a TEFC enclosure and frame size 213T, this motor supports easy installation in standard industrial installations, reducing downtime. The design aligns with Baldor-Reliance motor family expectations, delivering improved efficiency, lower total cost of ownership, and ready compatibility with modern drive systems. Operators gain quieter operation and reduced maintenance through reliable bearings and sealed TEFC design.
Product Information
Extended Description
7BECS100T4H7FF4 ABB: ECM IMD 7.50 Hp 460 V (ECS100T4H7FF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,213T,TEFC,TO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS100T4H7FF4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T4H7FF4
Gross Volume
10388.25 in³
Gross Weight
111 lb
Invoice Description
7.5HP,1800RPM,3PH,60HZ,213T,TEFC,TOP
Made To Order
No
Medium Description
ECM IMD, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS100T4H7FF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Product Name
ECM IMD
Product Net Depth / Length
27 in
Product Net Height
21.375 in
Product Net Weight
111 lb
Product Net Width
18 in
Product Type
Undefined
Quote Only
No
Rated Efficiency
94.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
INVERTER SPECIAL
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
IE5 efficiency rating drives measurable energy savings in continuous-duty applications. This 7.5 HP, 460 V, 3-phase motor delivers up to 94.70% rated efficiency, reducing operating costs and heat generation in pumps, fans, and conveyors. The 60 Hz supply and 1800 r/min synchronous speed ensure reliable performance in standard industrial cycles while meeting demanding industry expectations for efficiency and reliability. TEFC enclosure and frame 213T provide robust protection against dust and moisture, reducing maintenance and downtime. The shaft diameter of 1.38 in and overall 27 in length support straightforward couplings and installation in existing equipment footprints. As a foot-mounted, horizontally oriented motor, it simplifies retrofit projects and minimizes structural changes during installation. Starting with inverter drives is seamless thanks to inverter-special starting, enabling soft-start and controlled current draw when paired with VFDs. This compatibility minimizes mechanical stress and extends belt and bearing life in conveyors and mixer lines. The motor’s 4-pole design and 1800 r/min synchronous speed deliver consistent torque across a wide load range, supporting continuous operation in demanding processes. Reliability and maintenance are enhanced by solid bearings (6307 and 6206), shaft grounding, and a rugged steel frame. The TEFC enclosure protects critical components in dirty or washdown environments, while the 213T frame size aligns with common OEM couplings and gear reducers. With 0-day lead time and stock in multiple warehouses, procurement and installation planning become predictable for project timelines. Compliance and installation efficiency: NEMA standards and a standard catalog number (ECS100T4H7FF4) simplify documentation and spare-parts planning. The product’s country of origin (United States) supports domestic sourcing strategies and faster replacements. For retrofit projects, the combination of easy mounting, energy efficiency, and inverter compatibility translates into measurable ROI within the first year.
