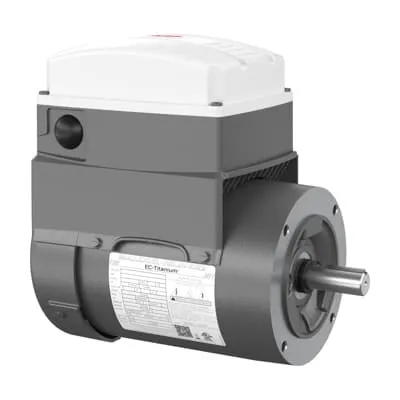

ABB ECS100T8H1DC4 ECM IMD - IE5 Efficiency, 230V TEFC
Part Number: 7BECS100T8H1DC4
Quick Summary
ABB ECS100T8H1DC4 ECM IMD drives a compact, efficient motor solution for HVAC, pumps, and conveyor systems in industrial facilities. This 1 HP, 230 V, 60 Hz, 3-phase ECM IMD delivers reliable performance with a TEFC enclosure and C-face mounting in a 143TC frame, designed for durable operation in tighter spaces. Operators often face energy waste from older motors, misalignment, and retrofit challenges; choosing a modern IE5 motor with a low starting current can reduce energy costs and downtime. The design also aligns with NEMA standards and UL/CULus/WEEE markings, helping maintenance and procurement teams meet compliance and streamlined supplier programs. With stock available in multiple warehouses and a 0-day lead time, you can accelerate projects while maintaining system performance and ROI.
Product Information
Extended Description
7BECS100T8H1DC4 ABB: ECM IMD 1 Hp 230 V (ECS100T8H1DC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1800RPM,3PH,60HZ,145TC,3516B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T8H1DC4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T8H1DC4
Gross Volume
7192.91 in³
Gross Weight
48 lb
Insulation Class
F
Invoice Description
1HP,1800RPM,3PH,60HZ,145TC,3516B,TEFC,F1
Made To Order
No
Medium Description
ECM IMD, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, 230 V, 60 Hz (ECS100T8H1DC4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
98 %
Product Name
ECM IMD
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
48 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A
Rated Efficiency
91.0 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, 230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V
Feature: IE5 high efficiency reduces energy consumption over the motor life. Business Impact: Lower operating costs and improved energy intensity metrics in continuous-duty applications. Application: Suitable for conveyors, pumps, and fans in manufacturing lines. Feature: TEFC enclosure with C-Face mounting enhances protection in dusty environments. Business Impact: Longer service intervals and reduced maintenance costs; simpler alignment during retrofits. Application: Industrial plants with challenging ambient conditions. Feature: Frame size 143TC and 230 V, 60 Hz, 3-phase design ensures broad compatibility. Business Impact: Easier retrofits and standardization across equipment inventories; faster spares provisioning. Application: Replacement for legacy 1 HP motors in OEM and retrofit projects. Feature: Direct on line starting and 2.5 A rated current improve startup reliability. Business Impact: Eliminates need for complex soft-start equipment in many lines; reduces hardware footprint. Application: Stage-ready for downtime-sensitive lines. Feature: Stocked at multiple warehouses with 0-day lead time supports aggressive project timelines. Business Impact: Quicker procurement cycles and reduced downtime; improved total cost of ownership. Application: Global operations with regional inventory access.
