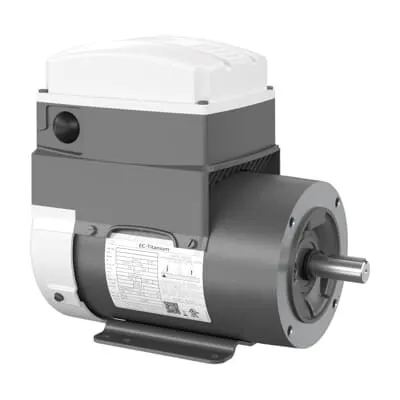

ABB ECS100T8H2DB4 ECM IMD - IE5 Efficiency
Part Number: 7BECS100T8H2DB4
Quick Summary
ABB ECS100T8H2DB4 ECM IMD is a compact, high-efficiency 2 HP three-phase motor designed for 230 V, 60 Hz systems in industrial equipment. It addresses uptime and energy costs by delivering reliable continuous-duty performance with a TEFC enclosure and C-face mounting. The unit carries IE5 efficiency, along with NEMA compliance and a rugged steel frame to withstand harsh manufacturing environments. With horizontal, foot-mounted installation and a 145TC frame, it integrates easily into retrofit projects while supporting straightforward maintenance and quick stocking at multiple warehouses. This combination yields lower total cost of ownership and faster project execution for OEMs and maintenance teams.
Product Information
Extended Description
7BECS100T8H2DB4 ABB: ECM IMD 2 Hp 230 V (ECS100T8H2DB4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1800RPM,3PH,60HZ,145TC,3524B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS100T8H2DB4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T8H2DB4
Gross Volume
7192.91 in³
Gross Weight
42 lb
Insulation Class
F
Invoice Description
2HP,1800RPM,3PH,60HZ,145TC,3524B,TEFC,F1
Made To Order
No
Medium Description
ECM IMD, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230 V, 60 Hz (ECS100T8H2DB4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
93 %
Product Name
ECM IMD
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
42 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.8 A
Rated Efficiency
91.3 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V
The ECS100T8H2DB4 delivers IE5 high-efficiency operation in a 2 HP, 1800 rpm, 4-pole package designed for 230 V, 60 Hz service. This efficiency reduces energy consumption and heat generation, delivering measurable operating-cost savings in conveyors, pumps, and fans across continuous-duty processes. The rugged TEFC enclosure and steel 145TC frame protect against dust and moisture while extending service intervals in harsh manufacturing environments. With C-Face drive-end mounting and horizontal foot-mounted orientation, installation and alignment are simplified, enabling quicker retrofits and safer maintenance in retrofit projects. Direct-on-line starting in a 3-phase system minimizes control complexity and equipment headroom, supporting compact drive trains and lower upfront costs. Finally, multiple stock locations and a 1-piece minimum order streamline procurement for facilities requiring rapid replenishment and just-in-time maintenance.
