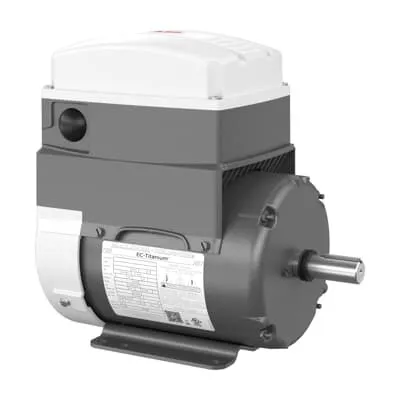

ABB ECS100T8H2DF4 ECM IMD - IE5 Efficiency
Part Number: 7BECS100T8H2DF4
Quick Summary
ABB ECS100T8H2DF4 ECM IMD is a 2 HP, 230 V motor with an integrated drive designed for robust industrial automation in light to mid-duty equipment. This compact, all-in-one solution reduces panel space, wiring complexity, and installation time, addressing common challenges faced by engineers and technicians. It meets IE5 energy efficiency, features a TEFC enclosure for harsh environments, and aligns with NEMA-style standards for reliable operation. With stock available across multiple warehouses, you can shorten lead times and minimize downtime. For retrofit or new equipment, this integrated drive motor offers energy savings, simplified maintenance, and seamless compatibility with standard plant interfaces.
Product Information
Extended Description
7BECS100T8H2DF4 ABB: ECM IMD 2 Hp 230 V (ECS100T8H2DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1800RPM,3PH,60HZ,145T,3524B,TEF
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS100T8H2DF4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECS100T8H2DF4
Gross Volume
5274.135 in³
Gross Weight
41 lb
Insulation Class
F
Invoice Description
2HP,1800RPM,3PH,60HZ,145T,3524B,TEFC,F1
Made To Order
No
Medium Description
ECM IMD, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230 V, 60 Hz (ECS100T8H2DF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Product Name
ECM IMD
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
41 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.8 A
Rated Efficiency
90.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V
Feature: Integrated ECM IMD drive in a 2 HP motor. Business Impact: Reduces panel space, wiring, and installation cost; simplifies control wiring and serviceability. Application: Conveyor lines and packaging equipment where compact drives improve layout efficiency. Feature: IE5 efficiency with TEFC enclosure on 230 V, 3-phase, 60 Hz. Business Impact: Delivers measurable energy savings, lower operating costs, and improved reliability in demanding environments. Application: Continuous-duty fans, pumps, and conveyors in manufacturing environments. Feature: Frame Size 145T with steel frame and shaft diameter 0.88 in. Business Impact: Easy coupling to gearboxes and pulleys, enhanced mechanical robustness, and straightforward mounting. Application: Industrial gear-driven solutions and standard drive trains. Feature: Direct on line starting and 4-pole, 1800 r/min operation. Business Impact: Simplifies start-up sequences, reduces control hardware, and minimizes startup current management. Application: Fast-paced lines where quick reach-to-speed is beneficial. Feature: Foot-mounted, horizontal mounting (F1) and standard mounting orientation. Business Impact: Easy installation, minimal custom brackets, and broad compatibility with existing bases. Application: Conveyor modules, blowers, and small pumps in compact machine frames. Feature: Stocking and lead time attributes (0 day lead time, multiple warehouses). Business Impact: Significant downtime reductions and faster project execution. Application: New builds and maintenance turnarounds across US and international sites.
