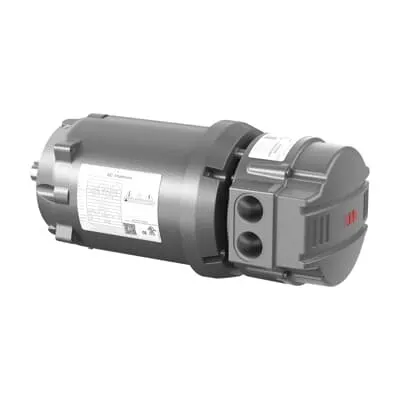

ABB ECS101A3K0P8DC4 ECM IMD - IE5 Efficiency
Part Number: 7BECS101A3K0P8DC4
Quick Summary
ABB ECM IMD is a 0.75 kW, 380 V three-phase motor designed for reliable industrial drive applications such as pumps, fans, and conveyors. The unit ships from multiple warehouses with zero lead time, addressing urgent procurement needs in manufacturing environments. This motor features TEFC enclosure, a D90C frame, and direct-on-line starting, delivering straightforward installation and robust performance in demanding conditions. With an IE5 efficiency rating and a 1500 r/min base speed, it reduces energy consumption and cooling load while maintaining precise speed control under continuous duty. Global origin is United States, with stock across US, Europe, and Asia, supporting rapid, cost-effective logistics for global manufacturers. Certifications include CE, UKCA, UL/CULUS, and WEEE.
Product Information
Extended Description
7BECS101A3K0P8DC4 ABB: ECM IMD 0.75 kW 380 V (ECS101A3K0P8DC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75KW,1500RPM,3PH,50HZ,D90C,3516B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6206
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A3K0P8DC4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A3K0P8DC4
Gross Weight
47 lb
Insulation Class
F
Invoice Description
.75KW,1500RPM,3PH,50HZ,D90C,3516B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90C
Mounting Orientation
Horizontal
Mounting Position
B14
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
47 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.4 A
Rated Efficiency
89.2 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
IEC
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
Feature → Business Impact → Application. The motor’s IE5 efficiency reduces energy consumption and cooling requirements, delivering measurable operating cost savings on continuous duty drives like conveyors and process pumps in demanding industrial environments. This translates to lower utility bills and improved thermal management across large-scale material handling and packaging lines. TEFC enclosure and a robust steel D90C frame provide dependable protection in dirty or washdown zones, extending maintenance intervals and lowering total cost of ownership for food processing and chemical processing applications. Direct-on-Line starting simplifies commissioning, reduces control hardware needs, and accelerates time-to-production on new lines, making it ideal for OEMs integrating new equipment and upgrading aging plants. With 3-phase 380 V compatibility and a 1500 r/min base speed, this motor aligns with existing drives and standard motor controller ecosystems for reliable performance. The stock is distributed across multiple warehouses, enabling predictable procurement and rapid deployment for industrial integrators and end users.
