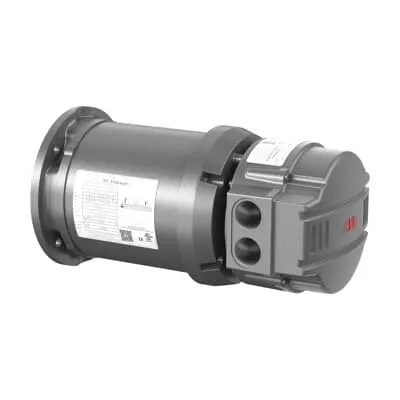

ABB ECS101A3K0P8DD4 ECM IMD - 0.75kW, 380V, IE5
Part Number: 7BECS101A3K0P8DD4
Quick Summary
ABB ECM IMD drives deliver precise motor control and efficiency for 0.75 kW applications in industrial fans, pumps, and conveyors. Many engineers struggle with startup surges, energy waste, and maintenance downtime from legacy drives. Certified to CE, UKCA, and UL/CUL standards, it supports safe, compliant operation across regions. Designed for 3-phase, 380 V systems, it reduces energy costs and extends motor life, delivering measurable ROI for plant modernization and maintenance programs. Built for easy integration with existing automation and fieldbus compatibility, delivering reliability, reduced total cost of ownership, and faster procurement.
Product Information
Extended Description
7BECS101A3K0P8DD4 ABB: ECM IMD 0.75 kW 380 V (ECS101A3K0P8DD4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75KW,1500RPM,3PH,50HZ,D90D,3516B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A3K0P8DD4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
D-Flange
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A3K0P8DD4
Gross Weight
47 lb
Insulation Class
F
Invoice Description
.75KW,1500RPM,3PH,50HZ,D90D,3516B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Mounting Position
B5
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
47 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.4 A
Rated Efficiency
89.2 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
IEC
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
Feature: IE5 efficiency (89.2% rated) minimizes energy use. Business Impact: Lower operating costs and reduced thermal stress extend motor life. Application: ideal for continuous-duty conveyors and fans in manufacturing lines. Feature: TEFC enclosure with steel frame (D90D) provides rugged protection. Business Impact: longer service intervals and easier maintenance in dusty or harsh environments. Application: installation on factory floors, paint booths, and assembly lines. Feature: Direct on line starting compatibility for reliable, simple start-ups. Business Impact: reduces hardware needs and startup surge concerns, enabling straightforward integration with existing controls. Application: drives for fans and pumps with predictable torque. Feature: 3-phase, 380 V rating ensures broad compatibility with standard industrial power distribution. Business Impact: simplifies wiring, reduces control cabinet footprint, and accelerates installation. Application: retrofits and new-build machines across packaging, material handling, and process industries. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: minimizes downtime and accelerates project timelines. Application: rapid modernization, emergency repair, and spare-part planning. Feature: Certifications and compliance (CE/UKCA/UL/CUL/WEEE). Business Impact: mitigates regulatory risk and speeds procurement. Application: global manufacturing operations and regulated environments.
