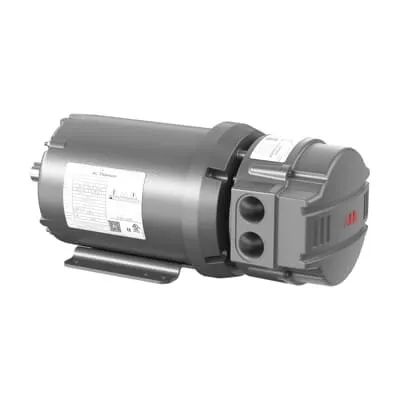

ABB ECS101A3K0P8DF4 ECM IMD - IE5 Efficiency
Part Number: 7BECS101A3K0P8DF4
Quick Summary
ABB ECM IMD is a compact, 0.75 kW motor solution designed for global industrial conveyors and pumps. This product addresses downtime and energy waste by delivering reliable performance with precise speed control and straightforward installation. These units carry CE and UKCA marks with UL/cUL recognition and a NEMA-based TEFC enclosure, ensuring safety and regulatory alignment. With a 380 V three-phase supply, a rated speed of 1500 r/min, and IE5 efficiency, the ECM IMD combines robustness with energy savings to reduce operating costs and simplify procurement for OEMs and integrators. It also fits standard mounting patterns for quick deployment.
Product Information
Extended Description
7BECS101A3K0P8DF4 ABB: ECM IMD 0.75 kW 380 V (ECS101A3K0P8DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75KW,1500RPM,3PH,50HZ,D90S,3516B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A3K0P8DF4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A3K0P8DF4
Gross Weight
47 lb
Insulation Class
F
Invoice Description
.75KW,1500RPM,3PH,50HZ,D90S,3516B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90S
Mounting Orientation
Horizontal
Mounting Position
B3
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
47 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.4 A
Rated Efficiency
89.2 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
IE5 efficiency is more than a spec; it translates to measurable energy savings over long-running processes. The ECM IMD delivers 89.2% rated efficiency at nominal load, helping plant managers meet energy targets while reducing utility bills. Its 0.75 kW rating and 4-pole design suit frequent starts and steady torque during conveyors and pump lines, with a 1500 r/min speed that matches common process timing. In practice, this means lower operating costs without compromising throughput, especially in automation cells that run continuously. TEFC enclosure and rugged build provide protection in dusty or on-floor environments. The Totally Enclosed Fan Cooled design minimizes ingress, extending bearing life and reducing maintenance intervals. The D90S frame with a 0.95 in shaft diameter supports common couplings and belt drives, while the 6205/6203 bearings manage load in misalignment scenarios. For installation, the foot-mounted base simplifies alignment with a chassis and standard mounting patterns, enabling fast retrofits into legacy equipment. Global stocking and zero-lead-time shipping help minimize downtime. The module is stocked at multiple warehouses (US, DE, CN, and others), with 0-day lead times to support rapid replacement during line stops. Compliance is straightforward: CE, UKCA, WEEE, and UL/cUL markings align with international safety standards, and NEMA references underpin compatibility with North American electrical practices. Finally, the motor’s nominal 380 V operation and direct-on-line starting satisfy many industrial controls without extra soft-start hardware, reducing upfront costs. Industry context shows that standardization matters; this motor’s compatibility with ABB Baldor-Reliance components further simplifies design, procurement, and service.
