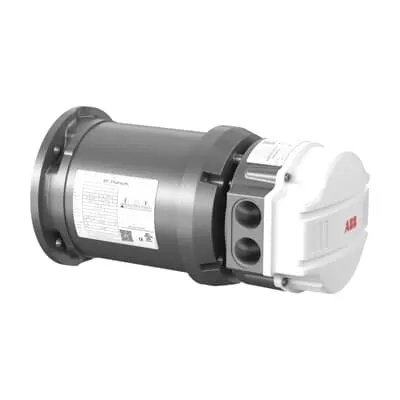

ABB ECS101A3K1P5DD4 ECM IMD - CE, UKCA & WEEE Certified
Part Number: 7BECS101A3K1P5DD4
Quick Summary
ABB ECS101A3K1P5DD4 ECM IMD is a 1.5 kW, 380 V three-phase motor assembly engineered for continuous operation in industrial drives and equipment. When downtime and sourcing delays threaten production timelines, a stock-ready solution with global availability becomes essential. This model carries CE, UKCA, and WEEE certifications, supporting compliant installations across markets and reducing regulatory risk. With a TEFC enclosure and a compact D90D frame, it delivers reliable performance in conveyors, pumps, and fans, while enabling efficient energy use and straightforward integration into existing drive systems. In short, it combines robust mechanical design with practical supply-chain advantages to maximize uptime and return on investment for industrial facilities.
Product Information
Extended Description
7BECS101A3K1P5DD4 ABB: ECM IMD 1.5 kW 380 V (ECS101A3K1P5DD4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5KW,1500RPM,3PH,50HZ,D90D,3524B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A3K1P5DD4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
D-Flange
Efficiency Level
IE4 | IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A3K1P5DD4
Gross Weight
42 lb
Insulation Class
F
Invoice Description
1.5KW,1500RPM,3PH,50HZ,D90D,3524B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Mounting Position
B5
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.5 kW
Power Factor
95 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
42 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A
Rated Efficiency
87.7 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
IEC
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
Feature → Business Impact → Application: The ECM IMD delivers 1.5 kW of output at 380 V in a rugged 3-phase design, enabling compact yet capable motor sizing for moderate-load drives. This translates to predictable torque and smooth operation across production lines, improving line balance in manufacturing automation and reducing process variation when paired with standard VFDs. The result is lower energy waste and steadier process control for conveyors and pumps in material handling environments. Feature → Business Impact → Application: IE4 | IE5 level efficiency with rated efficiency of 87.7% reduces heat generation and electricity costs over the motor’s life, delivering measurable annual savings in continuous-duty applications such as HVAC fans and cooling pumps. Feature → Business Impact → Application: TEFC enclosure with a Footless, horizontal B5 mounting arrangement simplifies installation, maintenance, and retrofit projects, reducing downtime during upgrades and enabling straightforward alignment with existing couplings and belts in OEM machinery. Feature → Business Impact → Application: Frame D90D, shaft diameter 0.95 in, and standard 1500 r/min speed provide compatibility with common conveyor and pump drives, ensuring reliable coupling and minimal rework for installation teams. Feature → Business Impact → Application: Global stocking at multiple warehouses (US, DE, CN, US) speeds procurement for emergency replacements and spares, supporting maintenance strategies that demand minimal lead times and predictable replacement cycles. Feature → Business Impact → Application: Certifications CE, UKCA, WEEE ensure regulatory compliance for European and international installations, reducing project risk and expediting approvals for new lines and upgrades across regulated industries.
