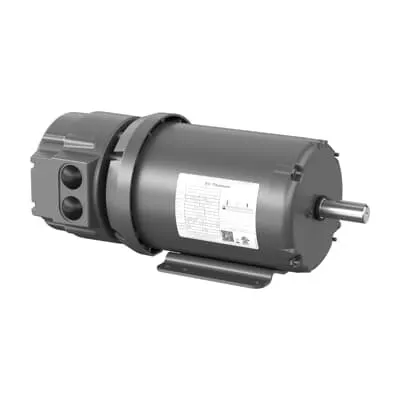

ABB ECS101A3K1P5DF4 ECM IMD 1.5 kW - CE/UKCA/WEEE
Part Number: 7BECS101A4H2DF4
Quick Summary
ABB ECS101A3K1P5DF4 ECM IMD provides 1.5 kW power for reliable 3-phase motor drives in industrial equipment. Engineers frequently grapple with integrating high-efficiency motors into existing TEFC enclosures while maintaining compact footprint and predictable ramp rates. This model carries CE, UKCA, and WEEE certifications, supports 380 V operation, and is designed for direct-on-line starting with a 1500 rpm base speed, offering robust performance across demanding loads. With IE4/IE5 efficiency options and a rugged steel frame, it supports long-term uptime and compliant operation in diverse environments. For procurement teams, the combination of readily available stock locations and standardized motor characteristics reduces lead times and maintenance complexity, translating into lower total cost of ownership.
Product Information
Extended Description
7BECS101A4H2DF4 ABB: ECM IMD 2 Hp 460 V (ECS101A4H2DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1800RPM,3PH,60HZ,145T,3524B,TEF
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101A4H2DF4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECS101A4H2DF4
Gross Volume
5274.135 in³
Gross Weight
42 lb
Insulation Class
F
Invoice Description
2HP,1800RPM,3PH,60HZ,145T,3524B,TEFC,F1
Made To Order
No
Medium Description
ECM IMD, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS101A4H2DF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
93 %
Product Name
ECM IMD
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
42 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.20 A
Rated Efficiency
91.9 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: The 1.5 kW ECM IMD motor runs at 380 V with a 1500 rpm base in a TEFC, foot-mounted (B3) enclosure. This compact, robust package minimizes panel space and simplifies mounting, accelerating installation and reducing cabling. It suits conveyors, pumps, and machine tools in metalworking and packaging lines. Feature → Business Impact → Application: IE4/IE5 efficiency options deliver lower energy use during continuous operation, helping meet energy targets and reduce running costs. The high-efficiency rating supports long duty cycles in automated lines and cooling-sensitive environments, making it a strong fit for HVAC fans or process equipment in mid-volume production. Feature → Business Impact → Application: Direct-on-Line starting and a 1500 r/min base speed enable straightforward integration with existing control logic while minimizing soft-start hardware. This simplifies commissioning in automated cells and replacement scenarios, improving ramp reliability for line feeds and packaging. Feature → Business Impact → Application: The steel TEFC frame, 0.95 in shaft, and bearings (6205/6203) provide rugged reliability under 40 °C ambient conditions. With horizontal mounting and a standard footprint, it aligns with common machine configurations, reducing retrofit risk in legacy systems. Feature → Business Impact → Application: Stocked at multiple warehouses (Germany, United States locations, China, Alaska) and a 1-piece minimum order simplify procurement and minimize downtime. Broad availability and clear cataloging reduce lead times for new builds and spare-parts planning in critical automation lines.
