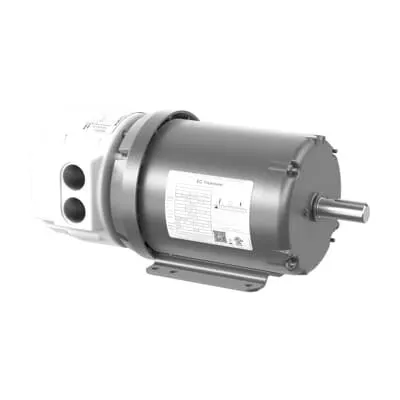

ABB ECS101A8H2DF4 ECM IMD 2HP - IE5 Efficiency
Part Number: 7BECS101A8H2DF4
Quick Summary
ABB ECS101A8H2DF4 ECM IMD delivers a compact 2 HP motor drive solution for demanding industrial applications. Engineers often struggle with reliability and energy waste when aligning speed and torque to load in continuous-duty lines. UL-listed and WEEE-compliant, this model also carries IE5 efficiency and robust NEMA compatibility to support safe, rule-compliant operation across US and international facilities. By combining high-efficiency performance with straightforward installation, ABB's ECM IMD reduces operating costs, improves uptime, and streamlines procurement for motor-drive projects in manufacturing, pumping, and material-handling environments. This makes it a compelling choice for OEMs and maintenance teams seeking predictable performance and lower total cost of ownership.
Product Information
Extended Description
7BECS101A8H2DF4 ABB: ECM IMD 2 Hp 230 V (ECS101A8H2DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1800RPM,3PH,60HZ,145T,3524B,TEF
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A8H2DF4
Certification Agency
UL | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A8H2DF4
Gross Volume
5274.135 in³
Gross Weight
42 lb
Insulation Class
F
Invoice Description
2HP,1800RPM,3PH,60HZ,145T,3524B,TEFC,F1
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
93 %
Product Name
ECM IMD
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
42 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.40 A
Rated Efficiency
90.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V
Feature: 2 HP ECM IMD with a 145T frame, 230 V three-phase input and TEFC enclosure. Business Impact: delivers reliable torque and ruggedness for common US electrical standards, reducing commissioning time. Application: ideal for conveyors, pumps, and fans in mid-size automation projects. Feature: IE5 efficiency rating. Business Impact: lowers energy consumption across long-running cycles, improving utility cost metrics. Application: continuous-duty processes such as pumps and process lines benefit from reduced heat load. Feature: Foot Mounted installation with 145T frame and 0.88 in shaft. Business Impact: straightforward retrofit and easier alignment with existing bases, lowering installation risk. Application: aftermarket upgrades and OEM integrations on production lines. Feature: Direct-on-Line starting for 3-phase operation. Business Impact: simplifies BOM and minimizes start-up components, shortening installation time. Application: reliable on-line starts for steady-state loads without external soft-starters. Feature: Stocked At Warehouses (US/GB/SG/US) with 0-day lead time. Business Impact: reduces downtime and speeds procurement for urgent maintenance. Application: facility-wide spares strategy and fast replacements in manufacturing environments.
Get a Quick Quote for a ABB 7BECS101A8H2DF4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101A8H2DF4?
Enquire Now
FAQs
Yes. This model is designed for 230 V, three-phase, 60 Hz operation and provides 1800 r/min at 145T frame, making it a straightforward replacement for similar 3-phase motors in standard US and international electrical systems. It supports direct-on-line starting and aligns with typical industrial drive architectures.
Key specs include 2 HP output, 230 V, 3-phase input, 60 Hz, 1800 r/min synchronous speed, 145T frame, TEFC enclosure, and 0.88 in shaft diameter. It delivers a rated current of 4.40 A and a power factor of 93%. The unit is UL-listed, WEEE-compliant, and built for continuous duty.
Yes. The motor is rated for continuous duty with a Direct-on-Line start, 1800 r/min nominal speed, and IE5 efficiency. This combination supports reliable performance in long-running conveyor and pump applications while minimizing energy waste and thermal load.
The ECS101A8H2DF4 is UL-listed and WEEE-compliant, ensuring safety and environmental compliance in US facilities and global deployments. It also adheres to NEMA standards for compatibility with typical industrial equipment and protection schemes.
Expect energy cost reductions due to IE5 efficiency, plus lower maintenance from a simple, direct-on-line design and TEFC enclosure. Fast stock availability (US/China warehouses) minimizes downtime, while robust reliability reduces spare parts usage and unplanned outages over the motor’s lifecycle.
