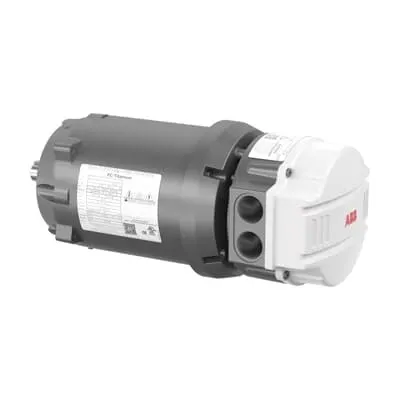

ABB ECS101A8K1P5DC4 ECM IMD - IE5, TEFC, 1.5 kW
Part Number: 7BECS101A8K1P5DC4
Quick Summary
ABB ECS101A8K1P5DC4 ECM IMD is a 1.5 kW, 230 V drive for reliable motor control in conveyors. Engineers often confront control instability, energy waste, and retrofit challenges when upgrading legacy motors. This model carries CE, UKCA, and WEEE compliance with IEC standards, supporting global deployments. Coupled with high IE5 efficiency and a rugged TEFC frame, it reduces operating costs while improving performance. This makes it a strong fit for automated material handling, pumping stations, and process equipment seeking dependable uptime and predictable maintenance. In practice, the compact D90C frame and footless mounting simplify retrofits and service workflows.
Product Information
Extended Description
7BECS101A8K1P5DC4 ABB: ECM IMD 1.5 kW 230 V (ECS101A8K1P5DC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5KW,1500RPM,3PH,50HZ,D90C,3524B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6206
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101A8K1P5DC4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101A8K1P5DC4
Gross Weight
42 lb
Insulation Class
F
Invoice Description
1.5KW,1500RPM,3PH,50HZ,D90C,3524B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90C
Mounting Orientation
Horizontal
Mounting Position
B14
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.5 kW
Power Factor
93 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
42 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Efficiency
90.6 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
IEC
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
230 V
IE5 efficient operation translates directly into lower energy consumption for 3-phase motor drives in continuous duty applications. The business impact is a measurable drop in operating costs over the motor’s lifecycle, improving return on investment for conveyors, pumps, and fans. In real-world plant environments, the 1.5 kW rating at 230 V supports compact yet powerful drive configurations, enabling precise speed control with high power density. The application of IE5 efficiency in automated lines reduces heat load and cooling requirements, which can extend equipment life and reduce cooling energy by targeting the most energy-intensive segments of the process. This aligns with industrial energy management goals and supports compliance initiatives in energy reporting.
Get a Quick Quote for a ABB 7BECS101A8K1P5DC4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101A8K1P5DC4?
Enquire Now
FAQs
The ECS101A8K1P5DC4 supports horizontal mounting (B14) with a D90C frame and footless base, allowing straightforward retrofits. Check existing mounting footprint, shaft alignment, and electrical wiring to match 230 V 3‑phase input and the direct-on-line start type. Ensure power supply and PLC compatibility, and verify ambient conditions do not exceed 40 °C. Stocked at multiple warehouses reduces downtime during swaps.
Key specs include 1.5 kW output, 230 V line voltage, 3-phase operation, rated current 3.4 A, IE5 efficiency, and a power factor of 93%. The motor runs at 1500 r/min and uses a 4-pole configuration with a 0.95 in shaft diameter. Direct on line starting supports simple, cost-effective control in many conveyor, pump, and fan applications.
Yes. The drive is certified with CE, UKCA, and WEEE marks and adheres to IEC standards, enabling global deployment. It is designed for 40 °C ambient operation and TEFC enclosure, which helps meet typical industrial enclosure and safety requirements while simplifying regulatory documentation for multinational sites.
Lead time is listed as 0 day, with stock availability across multiple warehouses (US, EU, ASIA). This means rapid fulfillment and reduced downtime for critical replacements. Active sales status and non-make-to-order conditions support quick procurement and on-site project scheduling.
Maintenance benefits come from IE5 efficiency and TEFC protection, lowering energy use and wear. ROI improves through reduced energy costs, easier retrofits, and faster service due to stock availability and straightforward installation. Regular checks on bearing condition (6206, 6203) and shaft integrity help sustain performance over the motor’s life.
