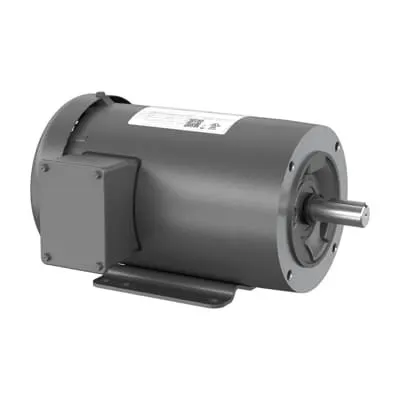

ABB 7BECS101M0H5DB4 ECM - IE5 Efficiency 5HP 60Hz TEFC
Part Number: 7BECS101M0H5DB4
Quick Summary
ABB ECM 7BECS101M0H5DB4 is a high-efficiency 5 horsepower, 3-phase electric motor designed for continuous industrial duty. It delivers reliable performance in conveyors, pumps, and fans, with compact 145TC frame size and C-face mounting for straightforward integration. This design targets energy-conscious applications where uptime and maintenance costs matter. The unit adheres to industry standards and labeling conventions, including NEMA compatibility, with CULUS and WEEE compliance for responsible lifecycle management. By combining robust construction with 230/460V operation at 60 Hz, it offers a practical path to lower energy bills and predictable performance in demanding environments.
Product Information
Extended Description
7BECS101M0H5DB4 ABB: ECM 5 Hp 230 V (ECS101M0H5DB4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,145TC,3548B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5DB4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5DB4
Gross Volume
3496.049 inÂł
Gross Weight
70 lb
Insulation Class
H
Invoice Description
5HP,1800RPM,3PH,60HZ,145TC,3548B,TEFC,F1
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (ECS101M0H5DB4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
70 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.20 A
Rated Efficiency
93 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.40
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE5 efficiency rating reduces energy consumption by minimizing I2R losses during long-running operations, delivering measurable cost savings on pumping and conveying cycles in manufacturing lines. Application: suitable for continuous duty in steel, plastics, and packaging plants where energy cost is a concern. Feature → Business Impact → Application: TEFC enclosure provides superior protection against dust and moisture, extending bearing life and reducing maintenance cycles in dusty foundries or humid environments. Application: ideal for fans, blowers, and process pumps in outdoor or harsh indoor spaces. Feature → Business Impact → Application: 1800 RPM base speed with 4-pole design enables smooth, predictable torque delivery and stable process control. Application: conveyors and material handling systems requiring consistent speed control. Feature → Business Impact → Application: 145TC frame with foot mounting and horizontal orientation simplifies retrofit projects and minimizes installation time. Application: upgrades in OEM and aftermarket replacement scenarios for automation lines. Feature → Business Impact → Application: 230 V / 460 V dual-voltage capability supports global plant layouts and spare-part standardization, reducing inventory complexity. Application: multinational facilities needing a common motor platform across 60 Hz networks. Feature → Business Impact → Application: Direct-on-line (DOL) starting lowers system cost by removing additional soft-starter requirements for short-line drives. Application: machine tools, pumps, and fans where rapid startup is beneficial. In addition, the unit’s shaft diameter of 0.88 in and a robust steel frame support long-term reliability in high-load cycles. This combination of specifications, including 5HP output and 93% rated efficiency, aligns with long-term maintenance strategies and total cost of ownership improvements for industrial facilities. Long-tail keywords integrated: three-phase motor, 60 Hz motor, 230/460V motor, TEFC enclosure, 145TC frame, foot-mounted motor, IE5 efficiency, direct-on-line starting, high-efficiency motors for conveyors, energy-efficient pumps.
