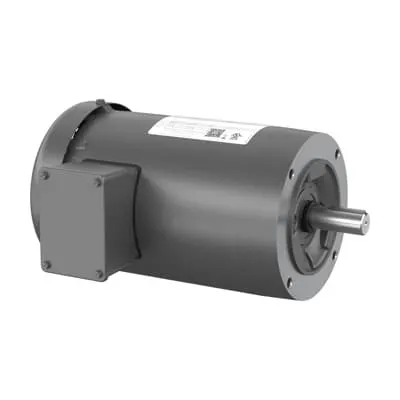

ABB ECS101M0H5DC4 ECM 5HP 1800RPM 230/460V - IE5
Part Number: 7BECS101M0H5DC4
Quick Summary
ABB ECS101M0H5DC4 ECM is a 5 HP, 3-phase motor designed for continuous-duty industrial drives and equipment that demand reliable torque at 1800 rpm. Dual voltage operation (230/460 V) and a TEFC enclosure make it adaptable across different plant layouts while simplifying electrical design. The unit follows NEMA-standard practices and offers IE5 efficiency for energy savings, with US origin and ready availability across multiple warehouses. This means faster procurement, reduced downtime, and a clearer path to lower total cost of ownership for maintenance teams and project engineers alike.
Product Information
Extended Description
7BECS101M0H5DC4 ABB: ECM 5 Hp 230 V (ECS101M0H5DC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,145TC,3548B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5DC4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5DC4
Gross Volume
3496.049 in³
Gross Weight
70 lb
Insulation Class
H
Invoice Description
5HP,1800RPM,3PH,60HZ,145TC,3548B,TEFC,F1
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECS101M0H5DC4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
70 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.20 A
Rated Efficiency
93 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.40
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Dual voltage flexibility enables quick deployment across global sites and various panel configurations, supporting a wide range of regional power systems. IE5 efficiency reduces energy consumption in continuous operation, lowering running costs for pumps, fans, and conveyors. The TEFC (Totally Enclosed Fan Cooled) enclosure provides rugged protection in dusty or humid environments, improving reliability and service intervals. The C-face mounting and 145TC frame simplify retrofits and replacements, enabling fast bolt-in installation with minimal downtime. Direct-on-line starting reduces startup equipment and simplifies electrical design, while the 5 HP rating and 1800 rpm constant-speed operation ensure predictable process performance. The motor’s durable steel frame, 0.88 inch shaft diameter, and 70 lb weight support robust installations and easier alignment. Stocked at multiple warehouses in the United States speeds field service and OEM sourcing.
Get a Quick Quote for a ABB 7BECS101M0H5DC4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101M0H5DC4?
Enquire Now
FAQs
This motor supports dual voltage operation (230 V or 460 V) with a TEFC enclosure and C-face mounting on a 145TC frame. It is designed for horizontal installation and straightforward bolt-in replacement, enabling quick upgrades in existing motor bases and minimizing downtime.
The ECS101M0H5DC4 ECM is rated IE5 efficiency with a 5 HP output and a nominal current around 5.20 A at full load. It operates at 60 Hz with a standard 1800 r/min speed, suitable for steady-state, continuous-duty applications.
Yes. The TEFC enclosure provides robust protection, with insulation class H and a 40 °C ambient rating supporting continuous duty in challenging industrial spaces. Combined with 3-phase 60 Hz operation and NEMA standards, it is well-suited for conveyors, pumps, and fans.
The motor complies with NEMA standards and is supported by CULUS and WEEE certification. It is US-origin and stocked in multiple warehouses, enabling compliant procurement and streamlined reverse logistics.
Direct-on-line starting reduces switchgear and soft-starter requirements, cutting initial capital costs. IE5 efficiency lowers energy bills, while fast replacement from stocked US warehouses minimizes downtime and improves total cost of ownership for maintenance crews and OEMs.
