ABB ECS101M0H5DF4 ECM - UL Listed, 5HP TEFC, 230/460V
Part Number: 7BECS101M0H5DF4
Quick Summary
ABB ECS101M0H5DF4 ECM motors deliver reliable 5 HP performance for industrial drives across manufacturing lines. For engineers responsible for selecting motorizing solutions, the challenge is matching system voltage, enclosure and efficiency without sacrificing reliability. This ECM is designed for direct-on-line startup, rugged TEFC protection, and 60 Hz operation, helping reduce startup currents and vibration. With UL and WEEE certifications and compliance to US-origin standards (NEMA-friendly footprint), it provides regulatory confidence for global plants. The combination of 230/460 V compatibility, IE1 efficiency, and a compact 145T frame supports easier retrofits and safer maintenance in OEM and service environments.
Product Information
Extended Description

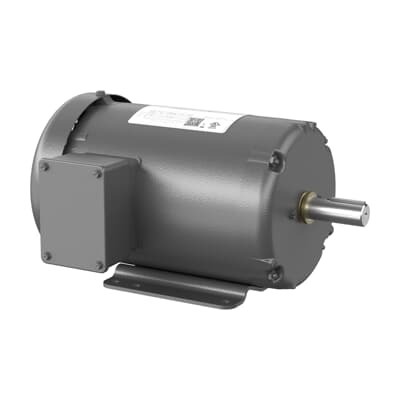

7BECS101M0H5DF4 ABB: ECM 5 Hp 230 V (ECS101M0H5DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,145T,3548B,TEF
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5DF4
Certification Agency
UL | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35AY0002
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE1
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5DF4
Gross Volume
3496.049 in³
Gross Weight
64 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
5HP,1800RPM,3PH,60HZ,145T,3548B,TEFC,F1
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECS101M0H5DF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
64 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.20 A
Rated Efficiency
93 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.40
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → The ABB ECS101M0H5DF4 ECM offers direct-on-line starting and 60 Hz readiness, reducing the need for soft-start equipment and enabling quick, predictable startups. Business Impact → Lower upfront controller costs and reduced downtime during line changes. Application → Suitable for conveyors, pumps, and fans in continuous-duty environments where fast motor engagement matters. Feature → TEFC enclosure combined with a robust 145T frame provides superior protection against dust, moisture, and harsh manufacturing conditions. Business Impact → Longer motor life, lower maintenance, and fewer field repairs. Application → Ideal for dusty or humid plants, including packaging and processing lines. Feature → Dual voltage operation (230 V / 460 V) and 3-phase, 60 Hz rating deliver flexibility for multi-site installations and retrofit projects. Business Impact → Inventory simplification and easier wiring, enabling faster project delivery. Application → OEM and retrofit projects across US and global facilities. Feature → IE1 efficiency with 5 HP output and 1800 RPM baseline supports energy-conscious operation. Business Impact → Reduced energy costs and improved overall equipment efficiency (OEE). Application → Continuous-duty drives such as pumps and blowers. Feature → 145T frame, 0.88 in shaft diameter, and 6205/6203 bearings provide a proven mechanical baseline and easy alignment with standard couplings. Business Impact → Quicker installation, reduced spare parts variety, and dependable long-term performance. Application → OEM equipment and service-friendly maintenance programs. Feature → UL and WEEE certifications along with NEMA standards ensure regulatory compliance in critical industries. Business Impact → Faster procurement cycles and assured safety and environmental compliance. Application → Global manufacturing facilities with strict governance requirements.
