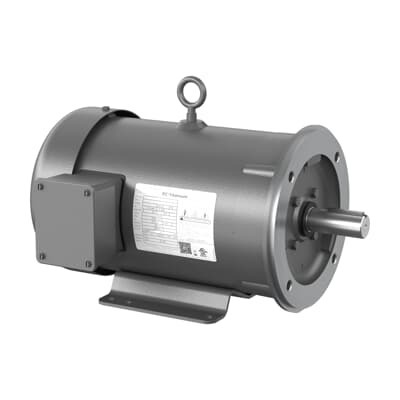

ABB ECS101M0H5EB4 ECM - 60 Hz, 5HP, 1800 RPM, IE5
Part Number: 7BECS101M0H5EB4
Quick Summary
ABB ECS101M0H5EB4 ECM delivers reliable motor control for industrial equipment with 5 HP at 230/460 V. When upgrading aging drives, engineers face downtime, mismatched mounts, and inconsistent efficiency ratings that slow projects. This model incorporates NEMA standards, an IE5 energy efficiency class, and a TEFC enclosure, paired with a 184TC frame to meet strict industrial requirements. Its dual-voltage capability and 3-phase, 60 Hz compatibility help reduce spare parts inventory while supporting streamlined procurement. In short, it enables safer, more energy-efficient automation across pumps, fans, and conveyors without sacrificing performance or reliability.
Product Information
Extended Description
7BECS101M0H5EB4 ABB: ECM 5 Hp 230 V (ECS101M0H5EB4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,184TC,TEFC,NON
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5EB4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5EB4
Gross Volume
5274.135 inÂł
Gross Weight
77 lb
Insulation Class
F
Invoice Description
5HP,1800RPM,3PH,60HZ,184TC,TEFC,NONE
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, 230/460 V, 60 Hz (ECS101M0H5EB4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
77 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.30 A
Rated Efficiency
93.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.50
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE5 efficiency improves energy performance and reduces running costs for high-load continuous duty. This translates to lower total cost of ownership in automated lines and longer equipment life, especially in pumps and fans. Application-wise, manufacturers gain measurable savings in process energy consumption and improved motor telemetry for monitoring. Feature → Business Impact → Application: Dual-voltage 230/460 V supports flexible installation across mixed fleets, trimming procurement complexity and stocking needs. Industrial customers benefit from faster project turnover and consistent performance in 3-phase systems at 60 Hz. Feature → Business Impact → Application: TEFC enclosure with 184TC frame provides rugged protection in challenging environments, reducing maintenance intervals and downtime. This is ideal for conveyors and process equipment in harsh facilities. Feature → Business Impact → Application: 1.13 in shaft diameter and 1800 r/min baseline speed deliver reliable torque and consistent drive performance, simplifying alignment and mounting in horizontal, foot-mounted configurations. Feature → Business Impact → Application: Direct-on-line starting and 4-pole design deliver quick motor engagement with minimal external controls, supporting compact control panels and straightforward installation in automation projects. Feature → Business Impact → Application: Stocked at multiple warehouses (US and China) and 0-day lead time options reduce idle time on critical spares, accelerating downtime recovery for mid- to high-volume OEMs and maintenance teams.
Get a Quick Quote for a ABB 7BECS101M0H5EB4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101M0H5EB4?
Enquire Now
FAQs
The motor is designed for foot-mounted installation with horizontal orientation (F1). This simplifies retrofits by aligning with standard 184TC frame, 1.13 in shaft diameter, and TEFC enclosure, reducing misalignment and enabling straightforward panel wiring and drivetrain integration.
This is a 3-phase motor rated for 230 V or 460 V at 60 Hz, with a 4-pole configuration and a rated current of 5.30 A. It delivers 5 HP at 1800 r/min with an IE5 efficiency rating and a power factor of 97% under standard load conditions.
Yes. The ECS101M0H5EB4 ECM is built for continuous-duty operation with a TEFC enclosure and robust frame (184TC), making it well-suited for pumps, fans, and conveyors in automation environments where energy efficiency and reliability are critical.
The motor aligns with NEMA standards and carries certification references such as CULUS/WEEE. These alignments support regulatory compliance in many regions and simplify cross-border procurement for equipment upgrades.
Stocked at multiple warehouses (including US and China) with zero-day lead times in some configurations, it reduces downtime. Coupled with IE5 efficiency and a low-maintenance TEFC design, customers typically see lower energy costs and longer service life, delivering faster payback on automation investments.
