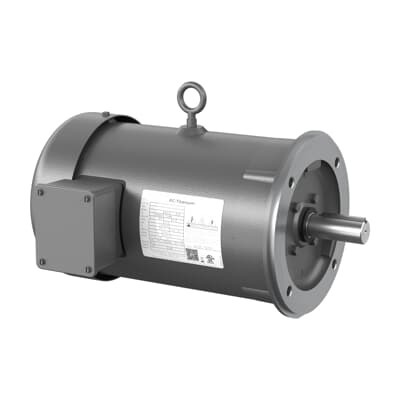

ABB ECS101M0H5EC4 ECM - IE5 Efficient 60 Hz
Part Number: 7BECS101M0H5EC4
Quick Summary
ABB ECM 5 HP motor powers reliable drive performance for conveyors, pumps, and processing lines. This 60 Hz, 3-phase motor is designed for 230/460 V operation, with a robust TEFC enclosure and a precise 184TC frame that fits common OEM footprints. Engineers face energy costs, downtime, and retrofit challenges; this model addresses those by combining high efficiency, rugged construction, and flexible mounting. Notably, it delivers IE5 efficiency, a 97% power factor, and a direct-on-line starting capability, helping projects meet energy regulations while reducing panel heating and electrical demand. With stock across multiple US and international warehouses and clear warranty terms, the ECS101M0H5EC4 supports rapid installation, easier procurement, and a smoother transition from legacy drives.
Product Information
Extended Description
7BECS101M0H5EC4 ABB: ECM 5 Hp 230 V (ECS101M0H5EC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,184TC,3632B,TE
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5EC4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5EC4
Gross Volume
5274.135 in³
Gross Weight
98 lb
Insulation Class
F
Invoice Description
5HP,1800RPM,3PH,60HZ,184TC,3632B,TEFC,F1
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECS101M0H5EC4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
ECM
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
98 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.30 A
Rated Efficiency
93.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.50
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IE5 efficiency with a 97% power factor. Business Impact: Reduces energy consumption and electrical demand, lowering operating costs over the motor’s life. Application: Ideal for continuous-duty conveyors and pumps in packaging and manufacturing lines where energy cost per hour is a priority. Feature: TEFC enclosure with 230 V / 460 V, 60 Hz capability. Business Impact: Protects rotor and windings from dust, moisture, and contaminants, increasing reliability in demanding environments. Application: Suitable for OEM machines and repairable field retrofits in food processing, material handling, and general automation. Feature: 184TC frame, 5 HP, 4-pole, 1800 r/min, 3-phase. Business Impact: Standardized footprint simplifies retrofit, reduces enclosure changes, and supports compact installations. Application: Fits common machine housings and mounting footprints, enabling quick transitions from older motors. Feature: Direct-on-line starting and C-face mounting with horizontal orientation. Business Impact: Minimizes start-up complexity and components, reducing capital and maintenance costs. Application: Ready-to-install in BOP and OEM equipment, with straightforward alignment to existing couplings and belts. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Accelerates procurement, reduces project delays, improves uptime planning. Application: Useful for expedited replacements in critical production lines and on-site commissioning. Feature: 230/460 V, 60 Hz operation and 1.13 in shaft with shaft grounding. Business Impact: Broad electrical compatibility and reliable mechanical connection, lowering installation risk. Application: Suitable for cross-site deployments and flexible power architectures in industrial facilities. Industry context and insights: The combination of IE5 efficiency, robust TEFC protection, and a standard 184TC frame addresses common OEM constraints—space, power quality, and lifecycle cost. With 3-phase power and 4-pole design, this motor is well-suited for continuous-duty applications, reducing energy bills while delivering consistent torque and speed control across packaging, conveying, and pumping systems.
