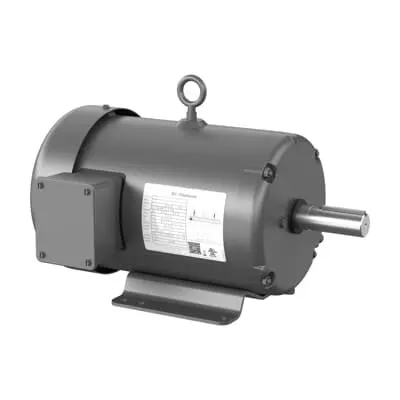

ABB ECS101M0H5EF4 ECM - 5HP, TEFC, 184T, UL/WEEE
Part Number: 7BECS101M0H5EF4
Quick Summary
ABB ECM ECS101M0H5EF4 is a 5 HP ECM motor designed for reliable, efficient operation in HVAC, pumps, and conveyors. Engineers often struggle with energy waste and downtime when selecting motors for mixed duty and space-constrained installations. With UL and WEEE certifications and alignment to NEMA standards, this model supports safety, regulatory compliance, and broad compatibility. Its dual voltage (230/460 V), 60 Hz operation, and IE5 efficiency deliver reduced energy costs and consistent performance in industrial automation environments.
Product Information
Extended Description
7BECS101M0H5EF4 ABB: ECM 5 Hp 230 V (ECS101M0H5EF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1800RPM,3PH,60HZ,184T,TEFC,N
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M0H5EF4
Certification Agency
UL | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36AY0001
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M0H5EF4
Gross Volume
5274.135 inÂł
Gross Weight
68 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Invoice Description
5HP,1800RPM,3PH,60HZ,184T,TEFC,N
Made To Order
No
Medium Description
ECM, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECS101M0H5EF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Product Name
ECM
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
68 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.30 A
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
INVERTER SPECIAL
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: IE5 efficiency. Business Impact: Lower energy consumption reduces operating costs and minimizes heat generation in continuous-duty applications. Application: Ideal for process and material handling lines where efficiency directly improves overall equipment effectiveness. Feature: TEFC enclosure. Business Impact: Provides dust, moisture, and contaminant protection, extending service life in harsh factory floors. Application: Suitable for conveyors, blowers, and pump systems in dusty or humid environments. Feature: Inverter-special starting. Business Impact: Enables smooth communication with VFDs, reducing inrush and mechanical stress. Application: Inverter-driven conveyors, fans, and pumps with precise speed control. Feature: Frame Size 184T and 4-pole 1800 rpm. Business Impact: Standardized footprint supports quick cross-compatibility and easy mounting, shortening installation time. Application: General-purpose machinery and line equipment where a compact yet powerful motor is required. Feature: Dual voltage 230/460 V, 60 Hz. Business Impact: Reduces spare parts and simplifies global deployment. Application: Global manufacturing sites with mixed electrical infrastructure.
