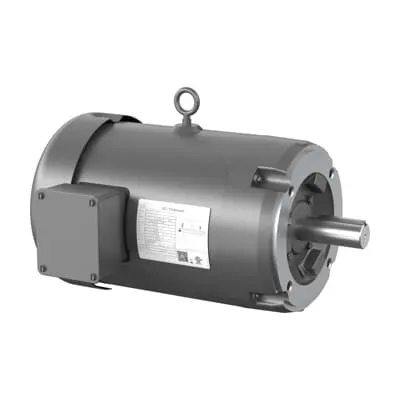

ABB ECS101M4H20FC4 ECM Motor - IE5 TEFC 460V
Part Number: 7BECS101M4H20FC4
Quick Summary
ABB ECS101M4H20FC4 ECM motor drives reliable 20 HP operation for heavy-duty automation and process equipment. This motor addresses energy costs and performance consistency, helping you maximize uptime. With NEMA alignment and compliance touches such as CULUS and WEEE certifications, it’s built for rugged industrial environments. IE5 efficiency and a TEFC enclosure reinforce long-term operating cost reductions, while the 215TC frame and C-face mounting ease integration into existing conveyors, pumps, and machine tools. For OEMs and maintenance teams, this motor delivers predictable torque, reduced heat, and simpler spare-part planning across multiple facilities.
Product Information
Extended Description
7BECS101M4H20FC4 ABB: ECM 20 Hp 460 V (ECS101M4H20FC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1800RPM,3PH,60HZ,215TC,3780B,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101M4H20FC4
Certification Agency
CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M4H20FC4
Gross Volume
7561.383 in³
Gross Weight
235 lb
Insulation Class
F
Invoice Description
20HP,1800RPM,3PH,60HZ,215TC,3780B,TEFC,F
Made To Order
No
Medium Description
ECM, 20 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, 460 V, 60 Hz
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
91 %
Product Name
ECM
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
235 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22.0 A
Rated Efficiency
95.90 %
Rated Speed
1800 r/min
Replaced Product ID (OLD)
7B37-0001734
Selling Unit of Measure
piece
Service Factor
1.50
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
20 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature → Business Impact → Application: 20 HP, 460 V, 3-phase power provides robust torque for demanding loads, enabling higher throughput in conveyors and pumps while maintaining energy efficiency; this translates to lower energy bills and improved process reliability in continuous-duty applications. Feature → IE5 efficiency → Cost reduction through loss minimization and heat control, improving motor longevity and reducing cooling requirements in aggregate systems such as packaging lines and material handling. Feature → TEFC enclosure → Protection against dust, moisture, and harsh factory environments, delivering extended service life in outdoor or dirty environments like aggregate handling and chemical processing. Feature → 215TC frame, 1.38 in shaft, and C-face mounting → Easier retrofits and drop-in replacements for legacy equipment, minimizing downtime during upgrades in packaging, textile, and food & beverage lines. Feature → Direct on line starting potential (DOL viability) and 1800 rpm base speed → Simplified electrical integration and improved startup response for pumps and fans with stable torque curves. Feature → 1.50 service factor and 60 Hz operation → Higher load tolerance and resilience for variable-duty applications like centrifuges and mixer drives, reducing overdesign needs and spare-part inventories. Feature → NEMA standards and CULUS/WEEE certifications → Compliance assurance for U.S. and international installations, simplifying procurement and cross-border deployments across oil & gas, metals, and automotive suppliers. This combination supports measurable outcomes in reliability, uptime, and total cost of ownership while aligning with long-tail search queries for “20 HP 460V motor,” “IE5 ECM motor,” and “C-Face 215TC frame” installations.
