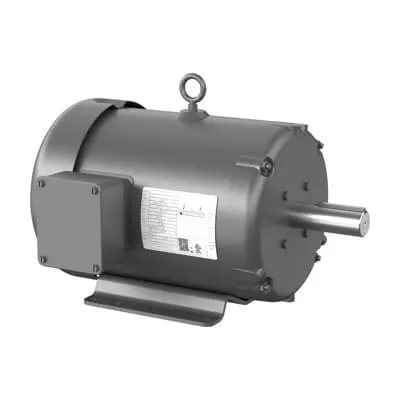

ABB ECS101M4H20FF4 ECM Motor - 20HP 460V IE5 efficiency
Part Number: 7BECS101M4H20FF4
Quick Summary
ABB ECS101M4H20FF4 ECM motor delivers 20 HP continuous power at 460 V for reliable, high-efficiency industrial drives. Engineers often struggle with inverter compatibility, enclosure suitability, and long lead times; this model addresses those pain points with a TEFC enclosure, 60 Hz operation, and 1800 rpm base speed. Key certifications, including IE5 efficiency, UL listing, and NEMA design B, assure regulatory compliance and safe operation in demanding environments. By prioritizing inverter compatibility and rugged mounting, this motor reduces energy waste and maintenance costs while enabling rapid deployment in US facilities and repair shops.
Product Information
Extended Description
7BECS101M4H20FF4 ABB: ECM 20 Hp 460 V (ECS101M4H20FF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1800RPM,3PH,60HZ,215T,TEFC,N
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101M4H20FF4
Certification Agency
UL | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37AY0001
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ECS101M4H20FF4
Gross Volume
7561.383 in³
Gross Weight
218 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Invoice Description
20HP,1800RPM,3PH,60HZ,215T,TEFC,N
Made To Order
No
Medium Description
ECM, 20 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS101M4H20FF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Product Name
ECM
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
218 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.60 A
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
20 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
INVERTER SPECIAL
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: 20 HP output with 1800 r/min base speed on a 460 V, 3-phase supply. Business Impact: Delivers consistent torque and drive performance for medium-load applications, enabling precise control with standard US power systems. Application: conveyors, pumps, and fans in automated lines. Feature: TEFC enclosure and 215T frame with foot mounting. Business Impact: Provides robust protection in harsh industrial environments, reducing dust ingress and maintenance downtime. Application: fabrication plants, packaging lines, and outdoor installations. Feature: IE5 efficiency rating. Business Impact: Lowers energy consumption and total cost of ownership while meeting corporate sustainability goals. Application: continuous-duty driven equipment across manufacturing floors. Feature: Inverter-friendly starting and INVERTER SPECIAL designation. Business Impact: Smooth VFD integration, reduced electrical stress, extended motor life, and improved process control. Application: variable-speed drives, process optimization, and retrofits. Feature: NEMA design B and 60 Hz, 4-pole configuration. Business Impact: Standardized performance with reliable short-circuit protection and predictable speed response. Application: industrial HVAC, pumps, and material handling. Feature: Stocked at multiple warehouses and fast lead times. Business Impact: Quicker procurement, lower downtime, and easier maintenance planning. Application: emergency repairs, equipment upgrades, and service contracts.
Get a Quick Quote for a ABB 7BECS101M4H20FF4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101M4H20FF4?
Enquire Now
FAQs
This motor is foot-mounted with a 215T frame and horizontal mounting. It runs on 460 V, 3-phase, 60 Hz, with a shaft diameter of 1.38 in. Use VFD-compatible wiring and ensure TEFC enclosure protection in the installation environment to maximize uptime.
Key specs include 20 HP continuous output, 21.60 A current, 460 V, 3-phase, 60 Hz, 1800 r/min base speed, and IE5 efficiency. Frame size is 215T and it is designed for NEMA design B performance with a 1.38 in shaft.
Yes. The ECS101M4H20FF4 is inverter-friendly with INVERTER SPECIAL starting and is designed for smooth VFD integration, enabling precise speed control for conveyors, pumps, and fans while reducing harmonic stress on the drive system.
The motor carries UL and WEEE certifications and complies with NEMA design standards. It is built for 60 Hz operation in the United States and supports CE-related expectations where applicable in mixed-duty environments.
Product warranty terms require standard returns for warranty claims. With stock available at multiple warehouses and zero day lead times, you can minimize downtime. Routine checks on TEFC seal integrity and shaft alignment support long-term reliability and ROI.
