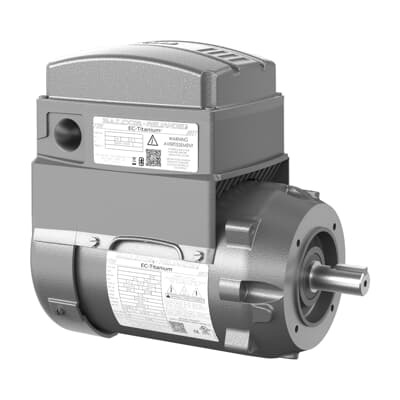

ABB ECS101T3K0P8DC4 ECM IMD - 0.75 kW 380 V IE5
Part Number: 7BECS101T3K0P8DC4
Quick Summary
The ABB ECS101T3K0P8DC4 ECM IMD motor delivers 0.75 kW at 380 V for reliable drives in conveyors, pumps, and fans. Engineers often struggle with selecting a motor that combines efficiency, startup performance, and rugged enclosure without driving up installation costs. This model carries IE5 efficiency and regulatory certifications including CE, UKCA, and WEEE, supporting green initiatives and market access across North America and Europe. Designed for direct installation in standard 90 mm frames and horizontal mounting, it reduces commissioning time and supports lower total cost of ownership. With regional stock in the US, EU, and Asia, you can accelerate procurement and minimize downtime on critical lines.
Product Information
Extended Description
7BECS101T3K0P8DC4 ABB: ECM IMD 0.75 kW 380 V (ECS101T3K0P8DC4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75KW,1500RPM,3PH,50HZ,D90C,3516B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6206
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101T3K0P8DC4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101T3K0P8DC4
Gross Weight
47 lb
Insulation Class
F
Invoice Description
.75KW,1500RPM,3PH,50HZ,D90C,3516B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90C
Mounting Orientation
Horizontal
Mounting Position
B14
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
47 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.4 A
Rated Efficiency
89.2 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
IEC
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
Feature → Business Impact → Application. The IE5 efficiency rating reduces energy consumption on continuous duty tasks, delivering measurable cost savings in pumping, conveying, and ventilation applications. This translates to lower operating temperatures and reduced cooling requirements, enhancing motor life and system reliability in harsh industrial environments. Feature → Business Impact → Application. The TEFC enclosure and 3-phase 380 V rating provide rugged protection against dust and moisture while maintaining strong performance in manufacturing floors, packaging lines, and material handling. This enables longer intervals between maintenance and lower risk of unplanned downtime. Feature → Business Impact → Application. Direct-on-line starting simplifies integration with existing drives and minimizes control cabinet complexity, speeding installation and reducing corrective maintenance costs on assembly lines and process equipment. Feature → Business Impact → Application. The D90C frame, shaft diameter of 0.95 in, and 1.4 A rated current offer a compact yet robust footprint that fits standard couplings and gearboxes, enabling quick retrofits for retrofits or new line installations. Feature → Business Impact → Application. Stocked At Warehouses worldwide (US, EU, Asia) and 0-day lead times support rapid procurement, helping project managers meet tight deadlines and reduce stock carrying costs. Feature → Business Impact → Application. With 0.75 kW output, 1500 r/min synchronous speed, and a 50 Hz design, this motor aligns with common industrial duty cycles, ensuring predictable performance in fans, pumps, and conveyors while reducing thermal signatures and energy bills.
