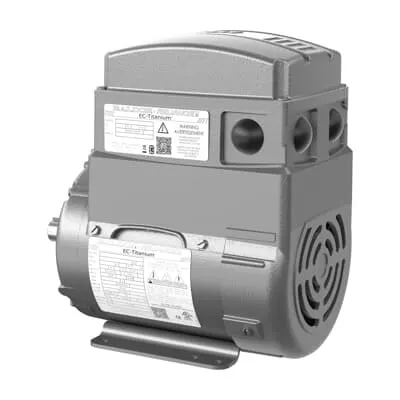

ABB ECS101T3K0P8DF4 ECM IMD - IE5 Efficiency
Part Number: 7BECS101T3K0P8DF4
Quick Summary
ABB ECS101T3K0P8DF4 ECM IMD motor is a 0.75 kW, 380 V three-phase drive solution designed for continuous-duty applications in manufacturing, packaging, and process equipment. This compact, reliable motor helps engineers balance performance with footprint in space-constrained drives. The model meets rigorous regulatory requirements and is built to endure demanding industrial environments, minimizing unplanned downtime. With CE and UKCA certifications and NEMA-aligned expectations, it supports global deployment and cross-border procurement. The TEFC enclosure, steel frame, and foot-mounted B3 configuration deliver straightforward installation, easy serviceability, and long service life, translating to lower total cost of ownership in high-demand production lines.
Product Information
Extended Description
7BECS101T3K0P8DF4 ABB: ECM IMD 0.75 kW 380 V (ECS101T3K0P8DF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75KW,1500RPM,3PH,50HZ,D90S,3516B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101T3K0P8DF4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101T3K0P8DF4
Gross Weight
47 lb
Insulation Class
F
Invoice Description
.75KW,1500RPM,3PH,50HZ,D90S,3516B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
D90S
Mounting Orientation
Horizontal
Mounting Position
B3
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 kW
Power Factor
97 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
47 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.4 A
Rated Efficiency
89.2 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
380 V
Feature → Business Impact → Application: 0.75 kW, 1500 r/min, 3-phase, 380 V motor delivers solid torque with modest size, enabling compact drive trains and reduced space needs in conveyors and fans. This improves line density and reduces cabinet heat load; suitable for continuous-duty conveyors, pumps, and process equipment. Feature → IE5 efficiency reduction in energy consumption translates directly to lower operating costs over the motor’s life, supporting energy-optimized HVAC and material-handling systems. Feature → TEFC enclosure and steel frame provide robust protection in dusty, humid, or demanding factory floors, enhancing reliability and reducing maintenance cycles for pump and mixer applications. Feature → Foot-mounted (B3) with D90S frame simplifies retrofit projects and new installations, cutting mounting time and enabling straightforward alignment with existing gear or belts in packaging lines. Feature → Direct-on-line starting and 4-pole design deliver predictable startup behavior in air handling and industrial fans, reducing mechanical stress and extending belt and bearing life. Feature → CE, UKCA, and NEMA-aligned standards ensure global compliance, smoothing international procurement and minimizing certification delays for multinational projects.
