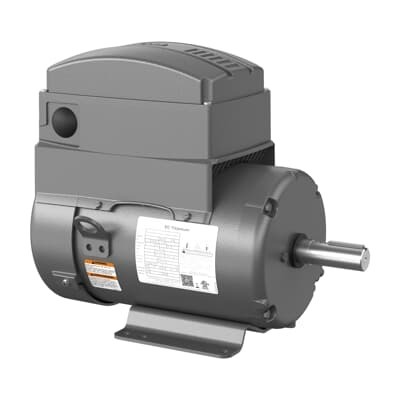

ABB ECS101T4H7EF4 ECM IMD Motor - IE5 Efficiency
Part Number: 7BECS101T4H7EF4
Quick Summary
ABB ECS101T4H7EF4 ECM IMD motor delivers reliable 7.5 HP performance for heavy industry applications such as conveyors, pumps, and fans. Engineers face downtime and rising energy costs, and this motor is designed to help reduce both through high efficiency and a rugged TEFC enclosure. Key certifications and standards include IE5 efficiency, a TEFC enclosure, and NEMA alignment for durable operation in challenging environments. With a 460 V 3-phase supply, 1800 rpm nominal speed, and frame size 184T, it fits seamlessly into existing OEM and maintenance workflows. The solution also offers consistent availability, lightweight design, and straightforward installation, supporting predictable maintenance, quick replacements, and reduced total cost of ownership for industrial motor supplies and systems integrators.
Product Information
Extended Description
7BECS101T4H7EF4 ABB: ECM IMD 7.5 Hp 460 V (ECS101T4H7EF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,184T,TEFC,TO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6206
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101T4H7EF4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECS101T4H7EF4
Gross Volume
8416.408 in³
Gross Weight
109 lb
Insulation Class
F
Invoice Description
7.5HP,1800RPM,3PH,60HZ,184T,TEFC,TOP
Made To Order
No
Medium Description
ECM IMD, 75 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECS101T4H7EF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
94 %
Product Name
ECM IMD
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
109 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.80 A
Rated Efficiency
94 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.13 in
Shaft Grounding
Shaft Grounding
Short Description
75 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Efficiency and energy savings are at the core of the ECS101T4H7EF4 design. The motor delivers 94% rated efficiency (IE5), which translates to meaningful reductions in energy consumption across continuous-duty pumps and fans, lowering total operating costs for manufacturing lines. The business impact is noticeable in energy budgeting and thermal management, while the application spans HVAC systems, material handling, and process automation where reliable torque is critical. The TEFC enclosure provides robust protection against dust, moisture, and harsh plant environments, reducing maintenance intervals and preventing performance degradation in dusty or humid facilities. This directly benefits industrial installations such as conveyors and mixers, where uptime is essential and replacement parts must be readily available. Mounting compatibility is enhanced by the foot-mounted, horizontal orientation and F1 mounting position, simplifying retrofit projects and minimizing installation time in OEM assemblies. With a 184T frame, 460 V/60 Hz operation, and a direct-on-line starting method, the ECS101T4H7EF4 supports straightforward integration with existing electrical infrastructure, enabling faster commissioning and predictable startup behavior. The motor’s bearings (6206 and 6205) plus a shaft diameter of 1.13 in contribute to long service life in continuous operation, reducing bearing-related failures and maintenance costs. Industry context emphasizes the value of compliant performance with NEMA standards, high ambient tolerance (up to 40 °C), and a 1800 r/min synchronous speed, making this motor well-suited for continuous-duty duties in automation lines. Additional benefits include a manageable weight (109 lb) and compact overall dimensions (frame 184T, length ~27.438 in, width ~18.313 in), which simplify crane picks and retrofits in space-constrained plants. In practice, end users see improved reliability, easier spare-part planning, and better total cost of ownership when replacing older 7.5 HP, 460 V motors with IE5-class solutions.
