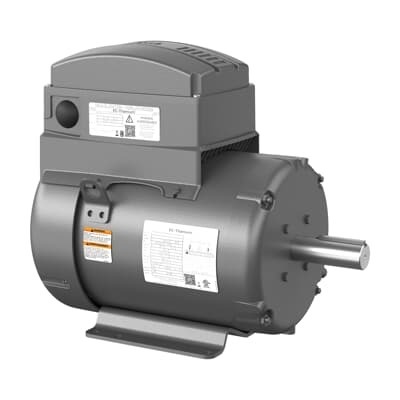

ABB ECS101T4H7FF4 ECM IMD - Premium IE5 Efficiency
Part Number: 7BECS101T4H7FF4
Quick Summary
ABB ECS101T4H7FF4 ECM IMD is a high-efficiency motor for demanding industrial automation applications. This 7.5 HP, 3-phase unit is designed to deliver reliable torque at 1800 RPM from a 460 V system, making it suitable for conveyors, pumps, and processing lines. Operators often struggle with energy waste and inconsistent performance; this motor targets those pain points with an IE5 efficiency level and a robust TEFC enclosure. The model also aligns with standard frame size 213T and horizontal mounting, simplifying retrofit and installation. With NEMA-style construction and weather-robust materials, it supports long service life in factory floors, reducing downtime and total cost of ownership. ABB's global stocking ensures faster sourcing and predictable lead times.
Product Information
Extended Description
7BECS101T4H7FF4 ABB: ECM IMD 7.5 Hp 460 V (ECS101T4H7FF4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1800RPM,3PH,60HZ,213T,TEFC,TO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6307
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECS101T4H7FF4
Certification Agency
BLUETOOTH | CULUS | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECS101T4H7FF4
Gross Volume
10388.25 in³
Gross Weight
178 lb
Insulation Class
F
Invoice Description
7.5HP,1800RPM,3PH,60HZ,213T,TEFC,TOP
Made To Order
No
Medium Description
ECM IMD, 75 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, 460 V, 60 Hz (ECS101T4H7FF4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
92 %
Product Name
ECM IMD
Product Net Depth / Length
27 in
Product Net Height
21.375 in
Product Net Weight
178 lb
Product Net Width
18 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.9 A
Rated Efficiency
94.70 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
75 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
460 V
Feature: IE5 efficiency rating delivers substantial energy savings over conventional motors. Business Impact: Lower running costs and improved overall plant efficiency, especially for continuous-duty loads like conveyors and pumps. Application: Industrial automation lines and process equipment seeking energy optimization. Feature: TEFC enclosure and 213T frame provide robust protection in challenging environments. Business Impact: Reduced maintenance, longer service life, and easier retrofits in dusty or humid facilities. Application: Manufacturing floors, material handling, and packaging lines. Feature: 7.5 HP at 1800 RPM with 3-phase 460 V operation ensures dependable torque for moderate-load applications. Business Impact: Predictable performance with compatible drives and control systems, enabling smoother line throughput. Application: Pumps, fans, and light- to medium-load conveyors. Feature: Direct on line starting and a 60 Hz supply simplify integration with existing motor control centers. Business Impact: Lower upfront complexity, faster commissioning, and reduced downtime. Application: OEMs and end-users upgrading legacy lines. Feature: 213T frame, 1.38 in shaft diameter, and 40 °C ambient rating support straightforward installation and rugged operation. Business Impact: Easy machine integration and reliable operation in typical factory conditions. Application: Retrofit projects and new line builds across manufacturing sectors.
Get a Quick Quote for a ABB 7BECS101T4H7FF4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECS101T4H7FF4?
Enquire Now
FAQs
Yes. ECS101T4H7FF4 is designed for 460 V, 3-phase operation and supports direct-on-line starting, making it a straightforward upgrade for existing lines. When planning start-up, ensure your control gear and circuit protection are sized for the motor's 8.9 A running current and inrush characteristics.
Key specs include rated current of 8.9 A, rated efficiency of 94.70%, and a power factor around 92%. The motor operates at 60 Hz with a rated speed of 1800 r/min and uses a 213T frame for compatibility with standard mounting patterns.
Best suited for conveyors, pumps, and light-to-medium load fans in manufacturing and processing lines. The TEFC enclosure and rugged frame support continuous operation in factory floors, while the high-efficiency design lowers energy costs for ongoing processes.
The motor is built to NEMA standards with IE5 efficiency, TEFC enclosure, and a 40 °C ambient rating, aligning with typical North American and global industrial requirements. Certification references include IE5 efficiency and enclosure compatibility, supporting regulatory and supplier-quality expectations.
Expect lower maintenance intervals due to robust TEFC sealing and durable steel frame, which reduces downtime. ROI is enhanced by IE5 energy savings, consistent performance, and stocked availability across multiple warehouses, ensuring faster project timelines and lower total cost of ownership.
