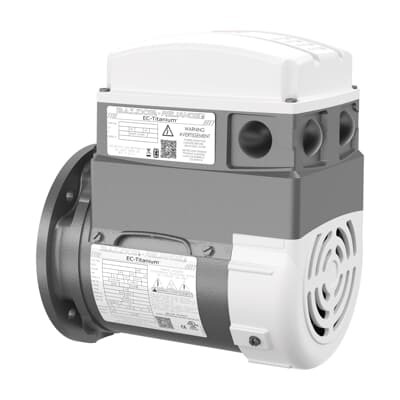

ABB ECS101T8K1P5DD4 ECM IMD - IE5 Efficiency Certified
Part Number: 7BECS101T8K1P5DD4
Quick Summary
ABB ECM IMD is a compact 1.5 kW, 230 V motor drive designed to optimize three-phase motors in demanding industrial applications such as pumps and conveyors. It helps plant operators reduce energy waste, minimize motor wear, and improve process stability by delivering precise speed control. The device complies with CE, UKCA, and WEEE regulations, with UL/cULUS readiness, reflecting strong regulatory alignment for multinational deployments. Its rugged TEFC enclosure, D-Flange drive end, and heavy-duty frame support harsh environments, while a zero-day lead time and stocking at multiple warehouses minimize downtime during line changes. Combined with Baldor-Reliance compatibility, it simplifies spares management and supports fast, reliable project rollouts.
Product Information
Extended Description
7BECS101T8K1P5DD4 ABB: ECM IMD 1.5 kW 230 V (ECS101T8K1P5DD4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5KW,1500RPM,3PH,50HZ,D90D,3524B,T
Ambient Temperature
40 °C
Base Speed
1500 r/min
Bearing
6205
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECS101T8K1P5DD4
Certification Agency
CE | CULUS | UKCA | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
D-Flange
Efficiency Level
IE5
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
ECS101T8K1P5DD4
Gross Weight
42 lb
Insulation Class
F
Invoice Description
1.5KW,1500RPM,3PH,50HZ,D90D,3524B,TEFC,B
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
D90D
Mounting Orientation
Horizontal
Mounting Position
B35
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.5 kW
Power Factor
93 %
Product Name
ECM IMD
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
42 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Efficiency
90.6 %
Rated Speed
1500 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.95 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
Voltage Rating
230 V
Feature: 1.5 kW, 230 V three-phase drive with IE5 efficiency. Business Impact: dramatically lowers energy consumption and running costs for continuous-duty equipment. Application: suitable for pumps, fans, and conveyors in process lines needing reliable speed control without sacrificing efficiency. The outcome is measurable energy savings and longer motor life, enabling a faster return on investment and reducing thermal stress on demanding industrial systems. Feature: TEFC enclosure with D-Flange drive end and frame D90D. Business Impact: rugged, maintenance-friendly installation that withstands dirty, hot environments while simplifying mounting. Application: horizontal mounting (B35) in crowded plant layouts, with straightforward wiring and service access. The result is lower installation time, reduced downtime, and easier preventive maintenance. Feature: Direct-on-line starting, rated current 3.4 A, and 1500 r/min nominal speed. Business Impact: eliminates complex soft-start hardware in many legacy lines, reducing control cabinet costs and startup time. Application: immediate torque delivery for start/stop cycles on conveyors and pumps. Outcome: improved startup reliability and lower total cost of ownership. Feature: Stocked At Warehouses across multiple regions and 0-day lead time. Business Impact: rapid procurement and minimized downtime during line changes. Application: project scoping and emergency replacements, with predictable delivery and fewer stockouts. Feature: Baldor-Reliance brand consistency, high compatibility, and regulatory certifications (CE/UKCA/WEEE). Business Impact: streamlined procurement, standardized spares, and compliant deployments across global sites. Application: multinational manufacturing environments seeking consistent performance and support.
