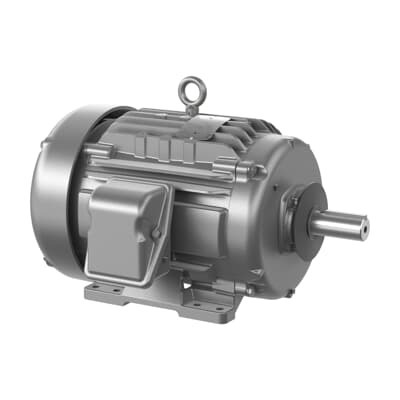

ABB 7BECTM2276T-G Chiller/Cooling Tower Motors - Premium Efficiency (NEMA Premium)
Part Number: 7BECTM2276T-G
Quick Summary
ABB 7BECTM2276T-G is a 7.5 HP, 230 V chiller motor for chillers and cooling towers. It delivers reliable, direct-on-line performance to drive fans and pumps in HVAC systems, reducing start-up time and downtime. The design features a TEFC enclosure and rugged iron frame built for harsh plant environments, with CSA EEV, CURUSEEV, and NEMA Premium certifications that meet essential safety and energy standards. By combining premium efficiency with dependable mechanicals, this motor lowers energy costs, simplifies maintenance planning, and supports scalable HVAC projects across hospital, data center, and industrial cooling applications.
Product Information
Extended Description
7BECTM2276T-G ABB: Chiller/Cooling Tower Motors 7.50 Hp 230 V (ECTM2276T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1180RPM,3PH,60HZ,254T,0954M,T
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM2276T-G
Certification Agency
CSA EEV | CURUSEEV | NEMA_PREMIUM
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
ECTM2276T-G
Gross Weight
302 lb
Heater Indicator
Heater Included, 115 V
Insulation Class
F
Invoice Description
7.5HP,1180RPM,3PH,60HZ,254T,0954M,TEFC,F
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
70 %
Product Name
Chiller/Cooling Tower Motors
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
302 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22 A | 11 A
Rated Efficiency
91 %
Rated Speed
1180 r/min
Replaced Product ID (OLD)
7B09N188T118G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: 7.50 HP, 230 V, 3-phase operation with a 1180 r/min nominal speed and 254T frame. Business Impact: Delivers efficient, reliable HVAC performance with solid energy use and straightforward integration. Application: Ideal for chillers and cooling towers in commercial and industrial settings. Feature: TEFC enclosure and rugged iron frame rated for a 40 °C ambient environment. Business Impact: Protects critical windings from dust, moisture, and heat, reducing maintenance cycles. Application: Harsh plant floors and outdoor cooling installations where uptime matters. Feature: Foot-mounted 254T frame with a 1.63 in shaft diameter and horizontal F1 mounting. Business Impact: Simplifies installation, retrofits, and alignment with standard couplings. Application: Retrofit projects and new HVAC builds on existing motor bases. Feature: Direct-on-line starting with a service factor of 1.15. Business Impact: Reduces electrical design complexity and startup stress, boosting system reliability. Application: Continuous duty in cooling towers and chiller packs where startup surges occur. Feature: Premium efficiency rating (NEMA Premium) and 91% rated efficiency. Business Impact: Lowers energy consumption and operating costs over the lifecycle. Application: Data centers, hospitals, and manufacturing HVAC where energy cost containment is critical. Feature: Certifications and standards including CSA EEV, CURUSEEV, and NEMA Premium. Business Impact: Ensures compliance with safety and energy regulations for regulated environments. Application: Public facilities, industrial plants, and regulated HVAC projects with strict procurement criteria.
