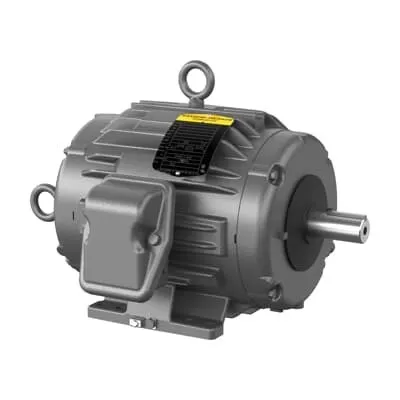

ABB 7BECTM3665T Chiller/Cooling Tower - IE3 Premium Efficiency
Part Number: 7BECTM3665T
Quick Summary
ABB 7BECTM3665T is a 5 HP TEAO chiller/cooling tower motor designed for reliable cooling in industrial HVAC and process applications. It delivers robust performance in demanding environments while supporting easy integration with standard 60 Hz, 208-230/460 V three-phase systems. This model addresses common pain points like energy waste, variable lead times, and compatibility gaps by offering true premium efficiency and a durable NEMA design. With certifications including IE3, NEMA Premium, and CSA/UR, it aligns with modern regulatory and procurement requirements. By pairing a compact 184T frame with stock availability across multiple warehouses, it delivers rapid deployment and predictable maintenance, driving lower total cost of ownership for chillers and cooling towers.
Product Information
Extended Description
7BECTM3665T ABB: Chiller/Cooling Tower 5 Hp 208 V (ECTM3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5 AIR OVERHP,1750RPM,3PH,60HZ,184T,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM3665T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYK700: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECTM3665T
Gross Volume
5274.135 inÂł
Gross Weight
108 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5 AIR OVERHP,1750RPM,3PH,60HZ,184T,0642M
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (ECTM3665T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
79 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
108 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: 5 HP motor with 1750 r/min at 60 Hz delivers strong cooling capacity with reduced energy consumption, supporting lower operating costs for large chillers and cooling towers. This IE3 premium efficiency motor minimizes heat generation and electricity use, improving system COP and lowering utility bills in facility HVAC upgrades and new builds. Feature → Application: TEAO enclosure (Totally Enclosed Air Over) accommodates high-temperature environments common in data center cooling and industrial process cooling, enabling installation in restricted spaces without extra cooling for the motor. Feature → Business Impact → Application: Frame 184T and 1.13 in shaft diameter provide compatibility with standard duty couplings and belt drives, simplifying retrofits and new installations in existing plant rooms. Feature → Application: 3-phase, 60 Hz operation at 208-230/460 V enables direct compatibility with common industrial power distribution, reducing wiring complexity and installation time. Feature → Business Impact → Application: Direct-on-line starting and a robust sealed bearing arrangement (6206) support high reliability and longer service intervals, improving uptime in continuous-duty cooling applications. Feature → Application: Regreasable lubrication and a service factor of 1.15 offer resilience under startup surges and variable load, ensuring stable performance in chiller condensers and cooling towers. Feature → Business Impact → Application: Stocked At Warehouses and zero lead time (Lead Time = 0 day) enable fast procurement and reduced project delays for new installations or replacements in critical cooling loops. Industry-specific context: The combination of TEAO design, premium efficiency, and standard frame size enables easier compliance with utility incentive programs while delivering measurable energy savings in HVACAC systems and industrial process cooling.
Get a Quick Quote for a ABB 7BECTM3665T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECTM3665T?
Enquire Now
FAQs
Yes. The 7BECTM3665T is a 3-phase, 60 Hz motor designed for 208-230/460 V operation with a TEAO enclosure. It uses a 184T frame and is suitable for direct-on-line starting, making it compatible with standard panel gear and typical cooling tower or chiller installations. Stock is available across multiple warehouses to support fast deployment.
Key specs include 5 HP output with a rated speed of 1750 r/min (synchronous speed ~1800 r/min), 60 Hz, 3 phases, 208-230/460 V, and an efficiency of 89.50% (IE3). The motor has a service factor of 1.15 and uses a TEAO enclosure with a 184T frame and a 1.13 inch shaft diameter for reliable coupling.
This motor is tailored for Chiller/Cooling Tower applications, especially where 5 HP, 1800 RPM operation is desired. It fits standard frame sizes (184T) and is ideal for HVAC cooling towers, condensers, and industrial cooling loops that require premium efficiency and reliable long-term operation under continuous duty.
The model supports CSA, CSA EEV, UR, and NEMA Premium certifications, reinforcing safety, energy efficiency, and compliance with regulatory standards. It also meets IE3 efficiency requirements and aligns with premium-efficiency programs common in modern industrial facilities.
Warranty terms indicate that products under warranty must be returned, and the motor is stocked for immediate procurement, reducing downtime. With features like regreasable bearings and a robust sealed bearing set, maintenance intervals can be extended, contributing to lower total cost of ownership and faster project ROI.
