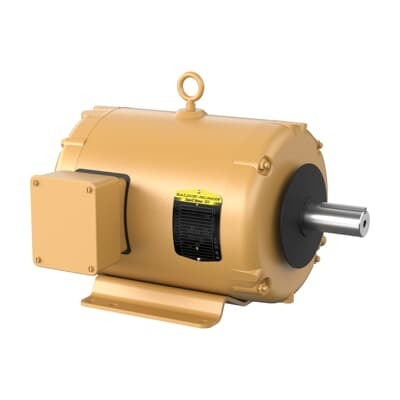

ABB 7BECTM3708T-5 Chiller/Cooling Tower - CSA UR
Part Number: 7BECTM3708T-5
Quick Summary
Chiller/Cooling Tower ABB 7BECTM3708T-5 delivers a compact, reliable 5 HP cooling solution for industrial HVAC and processing environments. Upgrading legacy equipment often leads to downtime, voltage mismatches, or installation complexities; this model is designed to integrate smoothly with 575 V, 60 Hz three‑phase systems. It carries CSA | UR certification and adheres to NEMA standards, with Premium Efficiency (NEMA 12-12) and TEAO enclosure for durable operation in harsh environments. By combining robust frame size 213TZ, direct-on-line starting, and a foot-mounted design, it reduces installation time and lifecycle costs. For procurement teams, short lead times and broad stock at multiple warehouses ensure faster project delivery and serviceability across regions.
Product Information
Extended Description
7BECTM3708T-5 ABB: Chiller/Cooling Tower 5 Hp 575 V (ECTM3708T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5 AIR OVERHP,1160RPM,3PH,60HZ,213TZ
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECTM3708T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ECTM3708T-5
Gross Volume
7192.91 inÂł
Gross Weight
149 lb
Insulation Class
F
Invoice Description
5 AIR OVERHP,1160RPM,3PH,60HZ,213TZ,3750
Made To Order
No
Medium Description
Chiller/Cooling Tower, 5 HP, 1200 RPM, Frame Size 213Tz, Standard Mounting, 3 Phase, TEAO Enclosure, 575 V, 60 Hz (ECTM3708T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
75 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
149 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A
Rated Efficiency
89.50 %
Rated Speed
1160 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.38 in
Short Description
5 HP, 1200 RPM, Frame Size 213Tz, Standard, 3 PH, TEAO, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
575 V
Feature → Business Impact → Application: 5 HP, 575 V, 3‑phase operation with TEAO enclosure and a rated speed of 1160 r/min. This aligns motor capacity with common industrial chiller loads, delivering reliable cooling with efficient power use in process cooling and HVAC systems. Application: best suited for 3‑phase cooling towers and chillers that require robust, low-maintenance performance. Feature → Business Impact → Application: Frame Size 213TZ, Shaft Diameter 1.38 in, Foot Mounted, Horizontal mounting (F1). Provides straightforward mechanical integration with standard couplings or belts, reducing retrofit complexity and downtime. Application: ideal for retrofit projects or new installations in tight plant spaces where horizontal orientation matters. Feature → Business Impact → Application: Direct On Line starting and NEMA Design B. Simplifies electrical controls, lowers initial costs, and minimizes startup delays, while maintaining reliable torque for startup under normal loads. Application: suitable for facilities prioritizing simplicity and fast startup for chillers and cooling towers. Feature → Business Impact → Application: Efficiency 89.50% and PF 75%. Delivers measurable energy savings over continuous operation, lowering operating costs and improving overall plant energy performance. Application: long-running cooling tasks in manufacturing lines and process cooling. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time and a clear warranty policy. Ensures rapid deployment, easier procurement, and predictable service continuity across regions. Application: industrial environments requiring quick replacements and consistent supply chain reliability. Feature → Business Impact → Application: 3‑phase, 575 V, 60 Hz compatibility with 213TZ frame and 5 HP rating. Supports standard industrial power networks, enabling seamless integration with existing controls and breakers. Application: general purpose cooling duties in HVAC, plastics, metalworking, and other process industries. Industry Insight: As demand for reliable, compact cooling solutions grows, this motor’s combination of Premium Efficiency and TEAO enclosure supports sustainable operations, reduces heat dissipation losses, and aligns with NEMA and CSA/UR compliance requirements. It also benefits procurement teams through transparent stock availability and straightforward installation procedures, helping to meet tight project schedules without sacrificing performance.
